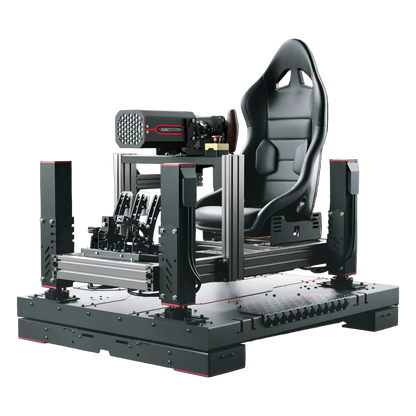

5 DOF Motion system

€22.602,00 EUR
€22.602,00 EUR
Sale Sold out
1 3
€22.602,00 EUR
€22.602,00 EUR

In stock
View full details

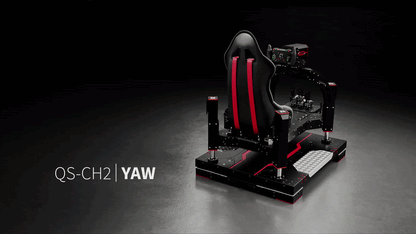

QS-CH2 PLATFORM

EFFECT OF TRACTION LOSS / ACCELERATION AND DECELERATION

The QS-CH2 provides the most precise traction loss feeling by moving the entire cockpit. The motion system is based on the world’s fastest linear actuator’s technology, which delivers an incredible level of instant feedback to the driver. This motion platform is suitable for Rally, Drift and any racing simulations. By providing the oversteering effect, the platform can be used effectively for real and sim racing drivers training making them feel what happens to the front and the rear of the vehicle.

2 DoF

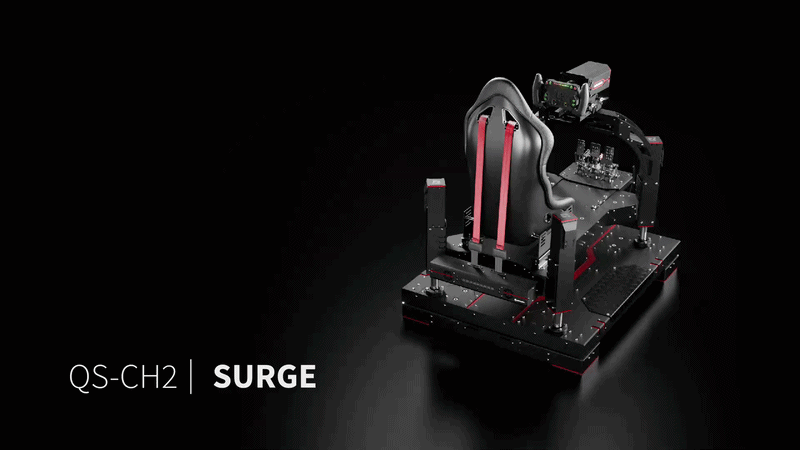

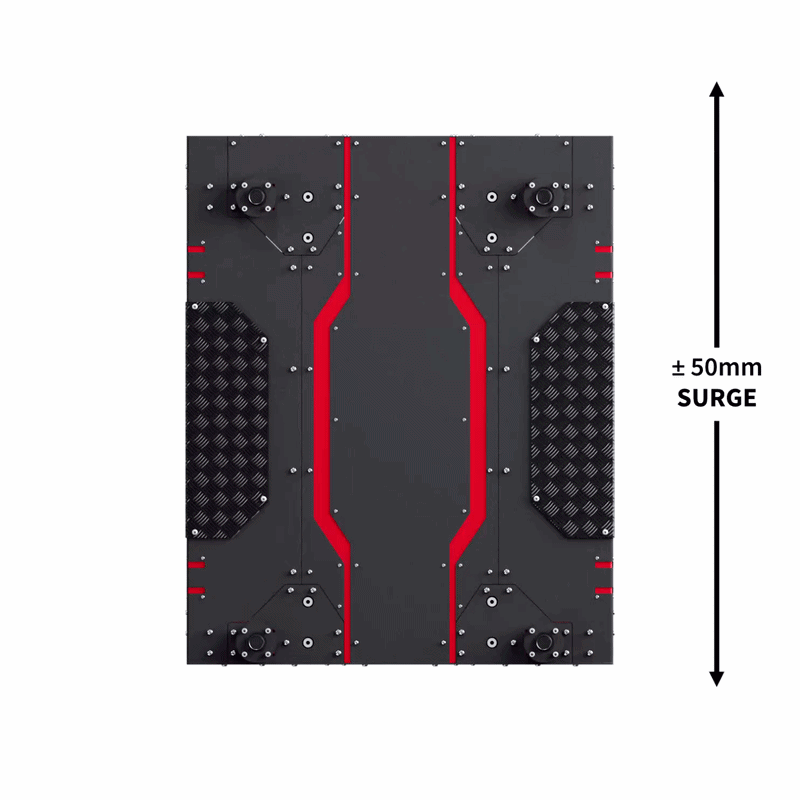

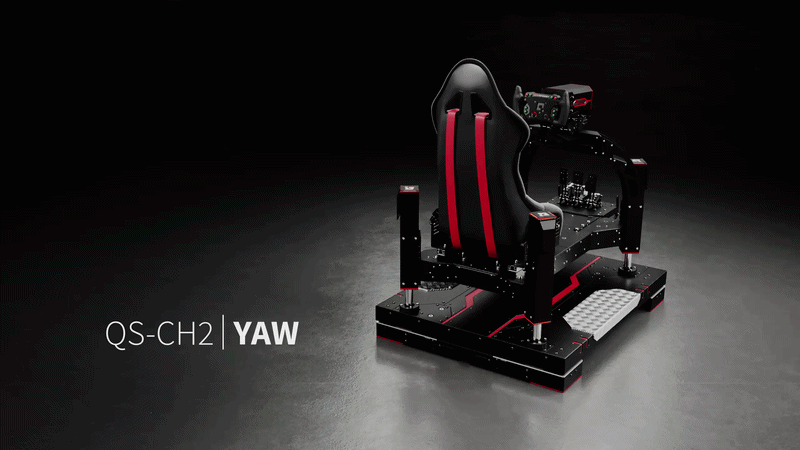

The QS-CH2 adds an additional two axes of freedom to the movement. The high dynamic range of motion in the SURGE axis combined with the wide range of motion in the YAW axis enhances the experience and provides an extremely realistic user experience.

COMBINED WITH QS-220

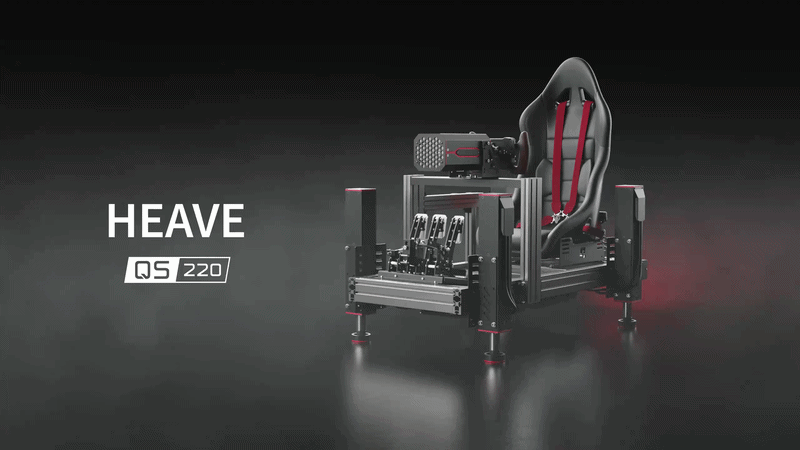

That gives you a Pitch / Roll and Heave motion

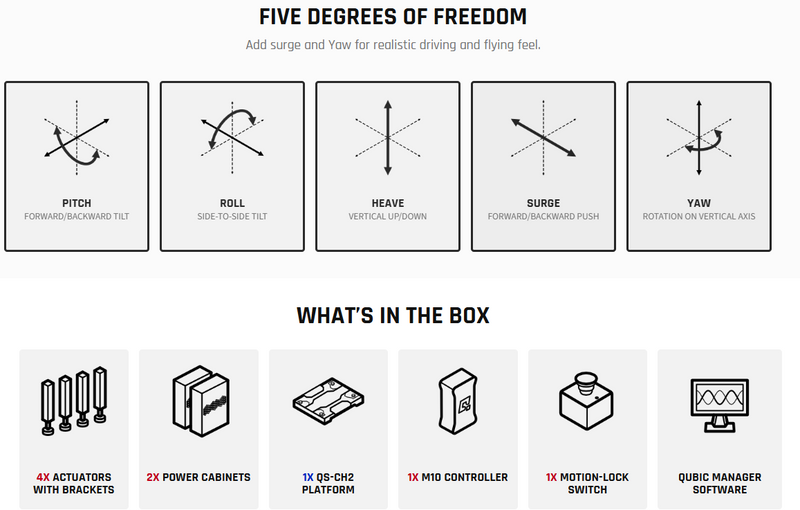

FIVE DEGREES OF FREEDOM

PLUG&PLAY

SIMPLE AND HASSLE-FREE SETUP PROCESS

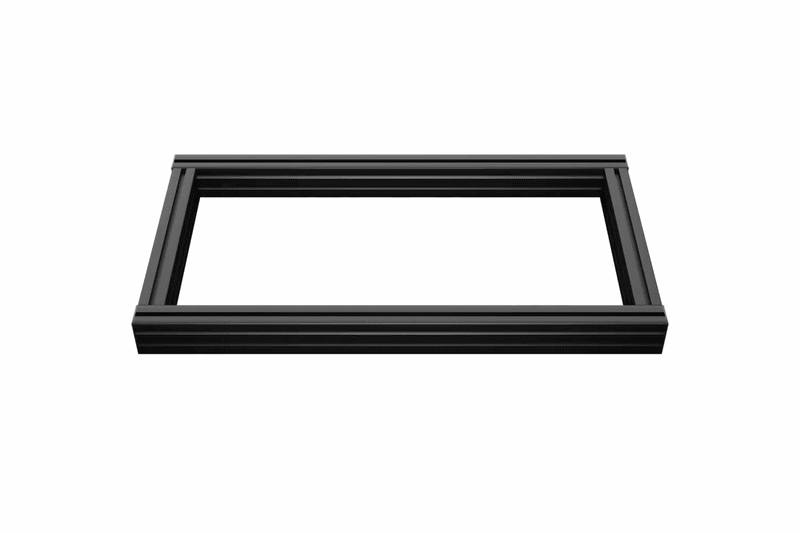

The installation of the QS-210/220 motion system is exceptionally straightforward. You can have it up and running within minutes. Attaching the four actuators to your aluminum cockpit is a breeze, thanks to the included mounting brackets that come with the motion set. To streamline the process further, you can easily download the Qubic Manager software with just one click, and it’s completely free of charge. Utilizing the step-by-step tutorial, you’ll effortlessly configure the system to your specific preferences. The motion system only requires a power supply of 115/230 VAC. In practically no time at all, you’ll be fully prepared to engage in thrilling races.

IN-HOUSE SOFTWARE

EVEN MOST ADVANCED HARDWARE IS NOTHING WITHOUT GOOD SOFTWARE

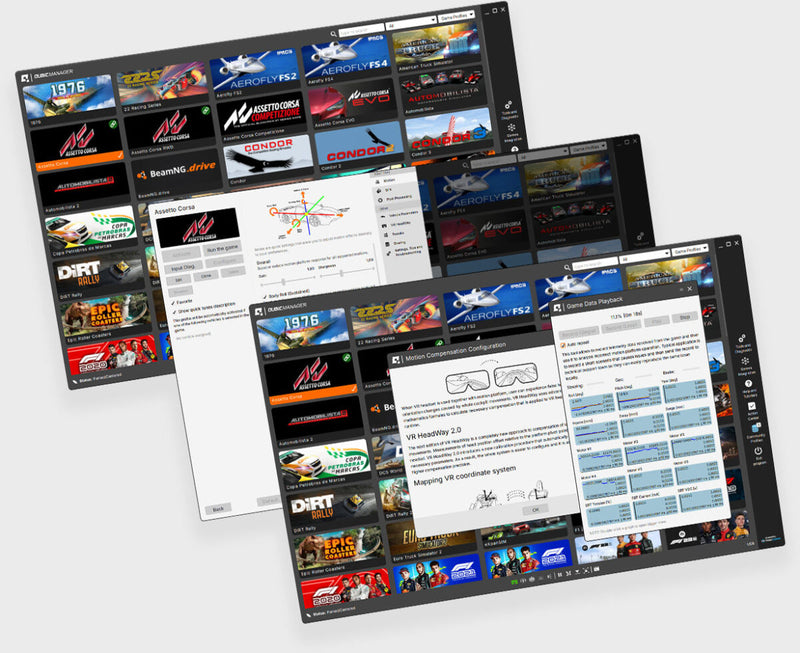

Qubic Manager is a in-house professional and specialized software for motion platforms. It is plug-and-play compatible with all major racing and flight titles on PC and is continually updated to support new titles as they are released. The Qubic Manager is a powerful engine, yet it’s simple to use, allowing you to easily adjust levels of motion, bumps, roll, and pitch with a click of a button.

Description

The ultimate modular configuration.

Combine QS-220 3DOF actuators with the QS-CH2 Surge/Yaw platform for 5DOF (degrees of freedom). Feel braking, acceleration, oversteer, and traction loss like never before.

5DOF CONFIGURATION

QS-220 + QS-CH2

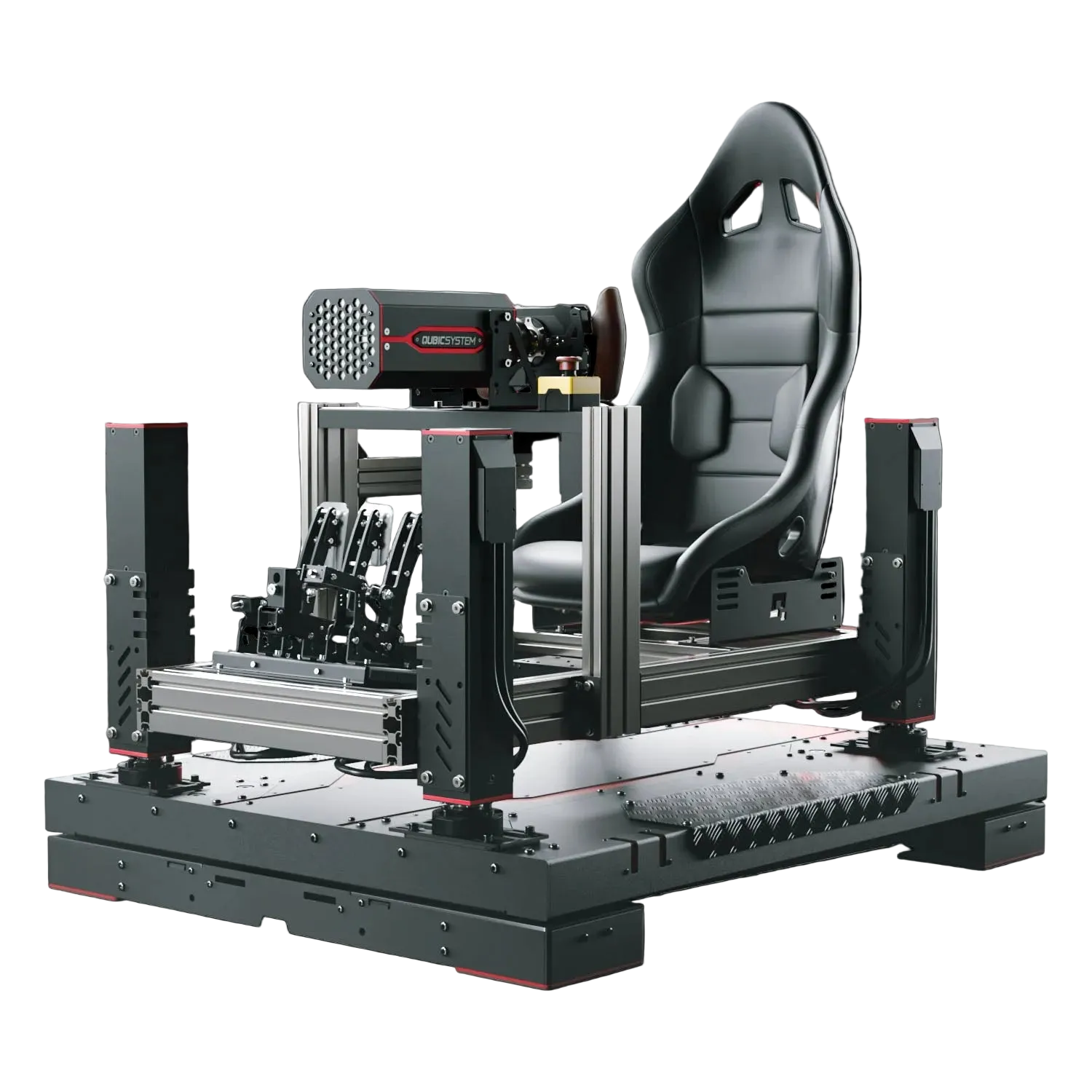

The 5DOF setup with QS-220 actuators combines a 3DOF cockpit (built around four QS-220 actuators) with the QS-CH2 traction loss platform installed underneath, adding yaw and surge (forward/backward movement).

 QS-220 simply gives you more room to “feel” the motion – thanks to its longer stroke and extra force, the cues can be deeper, smoother, and easier to control.



Who Is It For?



Rally & Drift Specialists


The QS-CH2’s Surge and Yaw motion was designed specifically for these disciplines. Feel the rear end slide, catch oversteer, and sense traction loss through your body.

  • Surge motion shows over-braking instantly
  • Yaw rotation reveals rear-end slip before visual cues
  • Train opposite-lock reflexes through physical feedback
  • Feel acceleration push and weight transfer
  • Perfect for Rally, Drift, GT, and F1 simulation
  • Develop car control skills faster than visual-only

Comprehensive Flight Training



Five degrees of freedom cover nearly all sensations needed for realistic flight. Surge adds deceleration feel; yaw enhances rudder coordination training.

  • Surge motion for landing deceleration
  • Yaw feedback for coordinated turns
  • Full heave for turbulence and touchdowns
  • Pitch and roll for all flight maneuvers
  • Improved slip/skid awareness
  • Ideal for combat and aerobatic simulation
