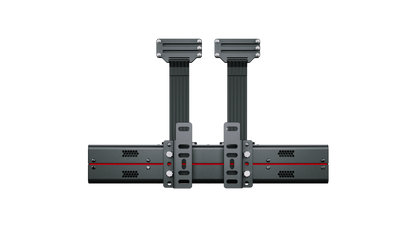

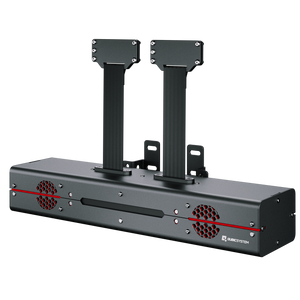

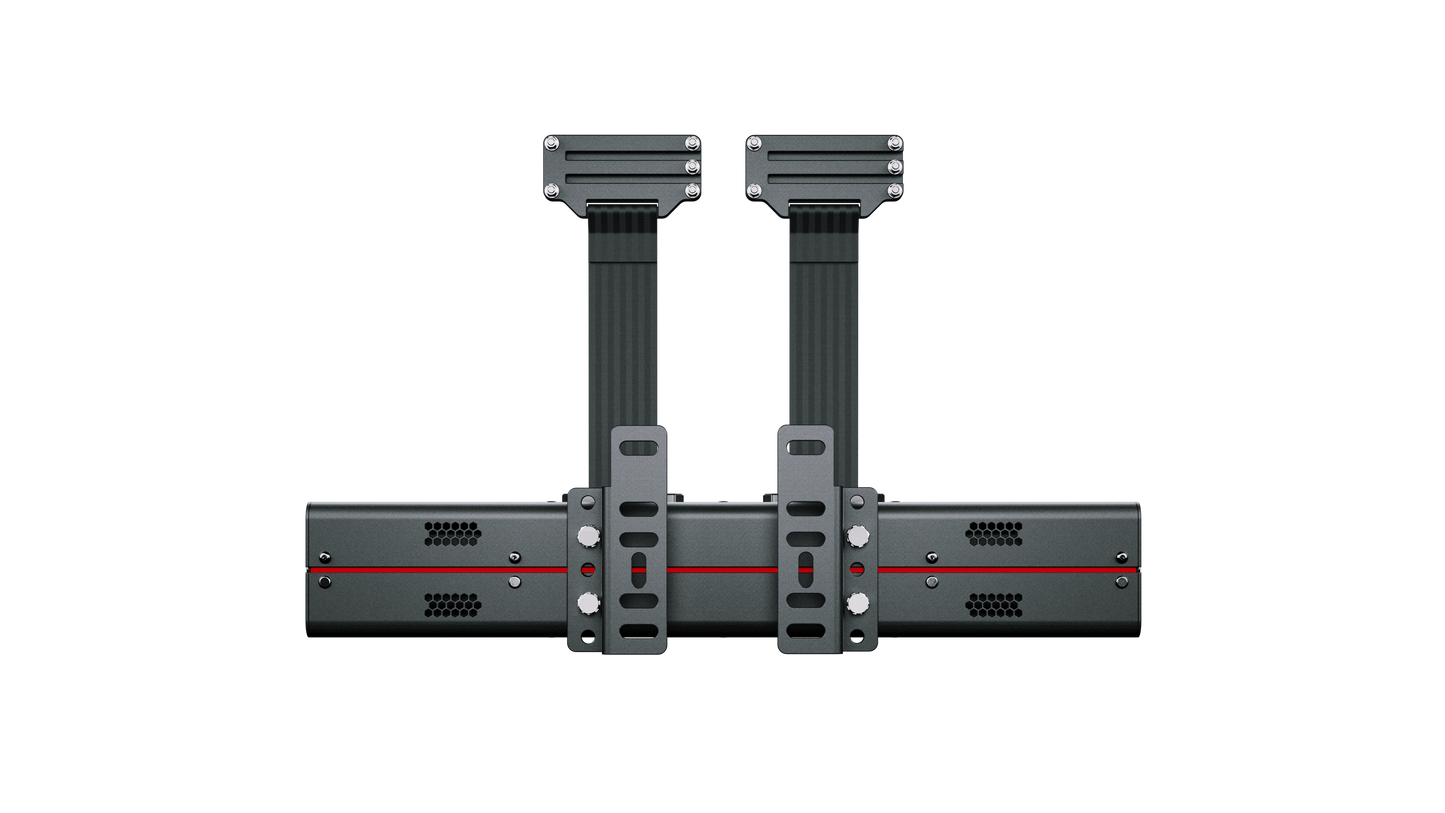

Active belt system QS-BT1

€1.679,90 - €1.750,00
1 6
Belts
€1.679,90 EUR
€1.679,90 EUR

In stock
View full details

Enhancing Car Braking Simulation Experience

Belt tensioner QS-BT1 significantly enhances the level of realism, providing you with an unparalleled opportunity to deeply engage in the intricate dynamics of braking.

This innovative device transforms car simulations into an exhilarating and exceptionally authentic experience, setting a new standard for the intensity and authenticity of virtual driving.

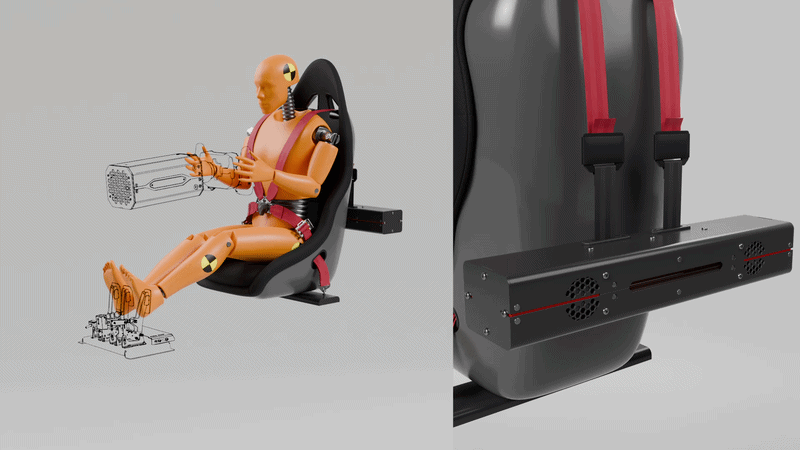

Advanced Steering Simulation with Dual Tensioner Tech

The advanced technology of the dual-channel seat belt tensioner enables precise steering motion simulation, creating a dynamic and realistic experience when turning.

Feel subtle reactions on corners and have full control over the steering wheel, just like in a real vehicle.

Gear Shifting Realism

Seat belt tensioner QS-BT1 goes beyond traditional simulation experiences by introducing the sensation of gear shifting. Through its sophisticated technology, you can distinctly feel the transition between gears as the seat belts respond accordingly to gear changes.

This innovative integration enhances the overall realism of the driving simulation, providing you with tactile feedback that replicates the nuanced dynamics of a real vehicle, making the virtual driving experience even more immersive and engaging.

TRUSTED SIMULATION SAFETY

The QS-BT1 is notable for its immersive experience and safety in simulating road conditions and vehicle behavior. Its design incorporates several safety features, including:

Use of motors and power supply that balance pulling force and speed for safety (difference in nominal voltages). / Optimal pulling force that is strong enough for realistic sensations but safe for humans. / The dual-channel self-testing Motion-Lock [6] system, compatible with various QS motion platforms and QS-DD-20. / Additional software watchdogs that enhance safety beyond the hardware solutions.

Description

QS-BT1

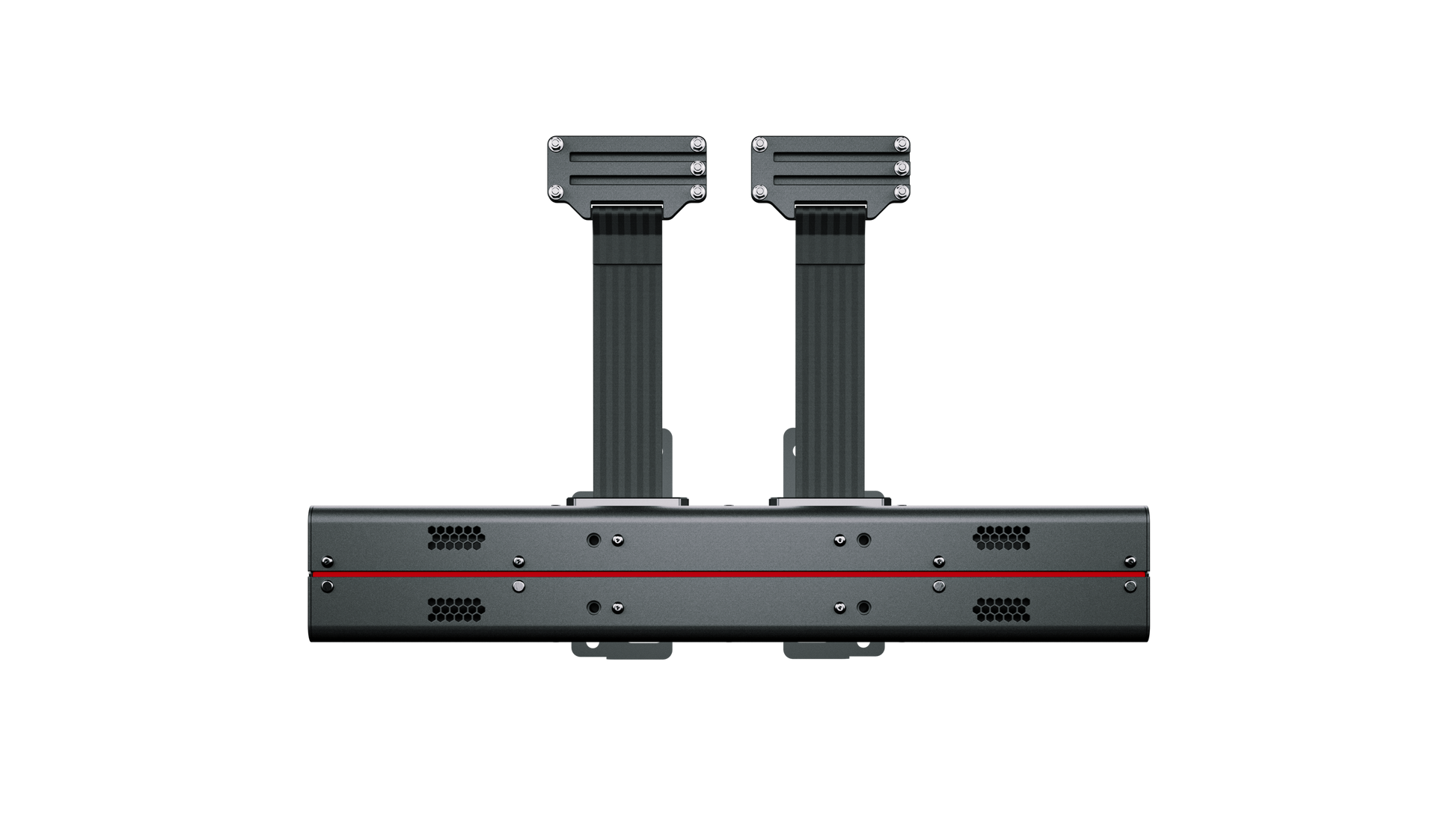

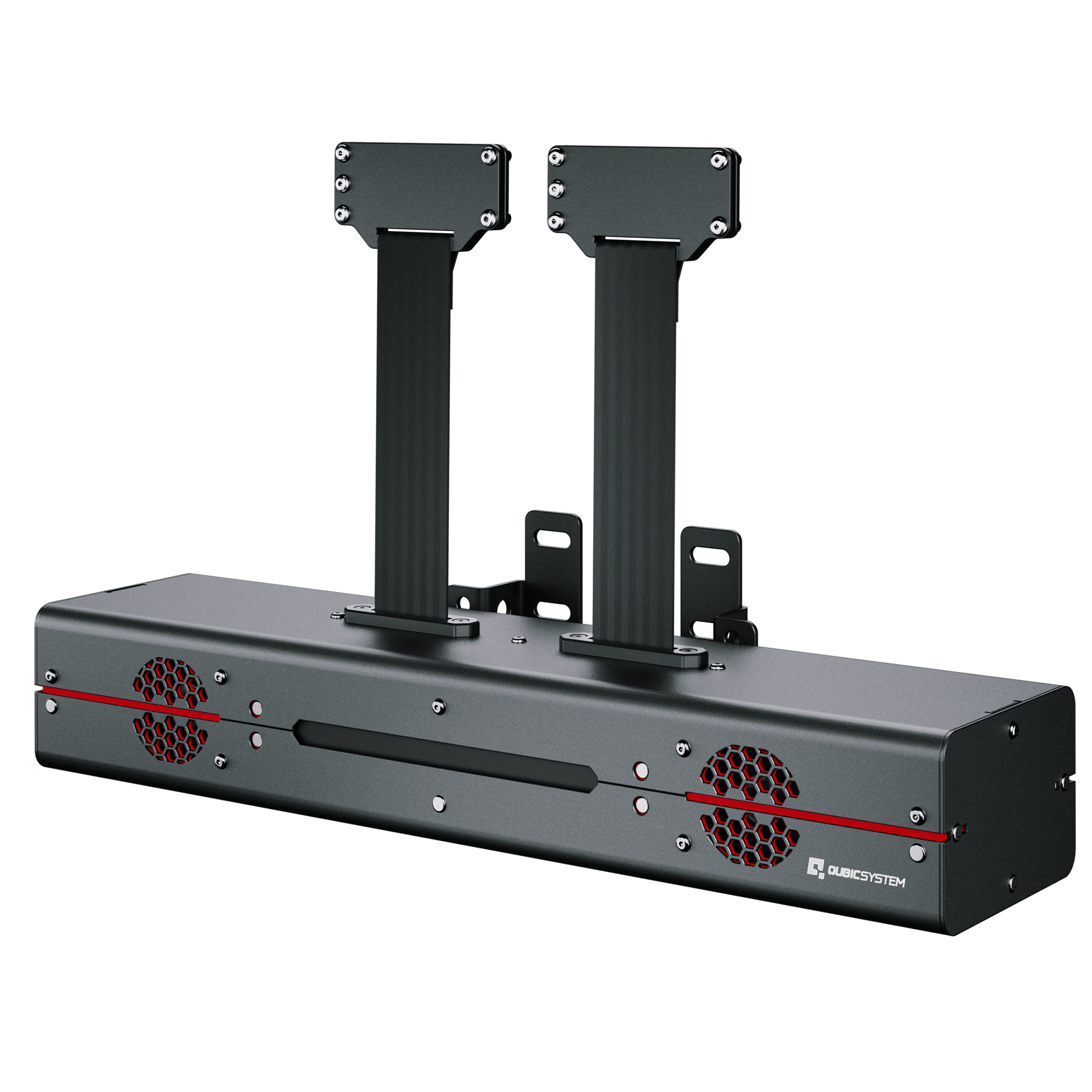

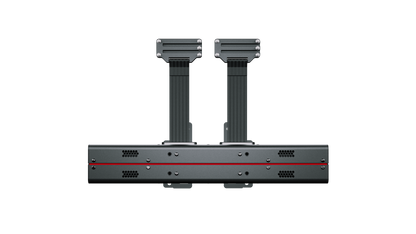

Driven by the same technology as breathtaking QS-220, QS-BT1 is a multi-purpose, dual channel, direct drive seat belt tensioner that increases sim racing immersion like no other device in its class and price range. It can complete not only force feedback offered by direct drive wheels, but also move up the level of overall experience offered by already really immersive QS motion platforms and if needed, it can even act as a standalone independent device.

Simulation of braking, lateral accelerations, high speed cornering, wheel locks and traction loss are among list of primary features of QS-BT1. Asymmetrical engine vibrations and road surface effects like rumble strips are also available for games that support them and despite being designed mainly for sim racing application, with its 200 N of force per channel, QS-BT1 can also successfully be used in flight simulators, to make you feel gigantic forces during high G maneuvers.

USER MANUAL


GENERAL SPECIFICATION OF QS-BT1


Power Source: 4A/115VAC, 2A/230VAC
Rated Power: 321 W
Inrush Current: 20A/115VAC, 40A/230VAC
Protection Class: 1
Interface: USB
Number of Independent Channels: 2
Pulling Force: 20.5 kg/45 lbs/200 N per channel
Storage Temperatures: +5°C to +40°C
Full Performance Temperatures: +5°C to +35°C
Computer Compatibility: Windows PC
Supported Effects: Depends on Specific Game
Multifunctional RGB
Maximum Length of USB Cable: 3m
Maximum Length of Motion-Lock Cable: 3m
Motion Platforms Compatibility: QS, PS, HS [1]

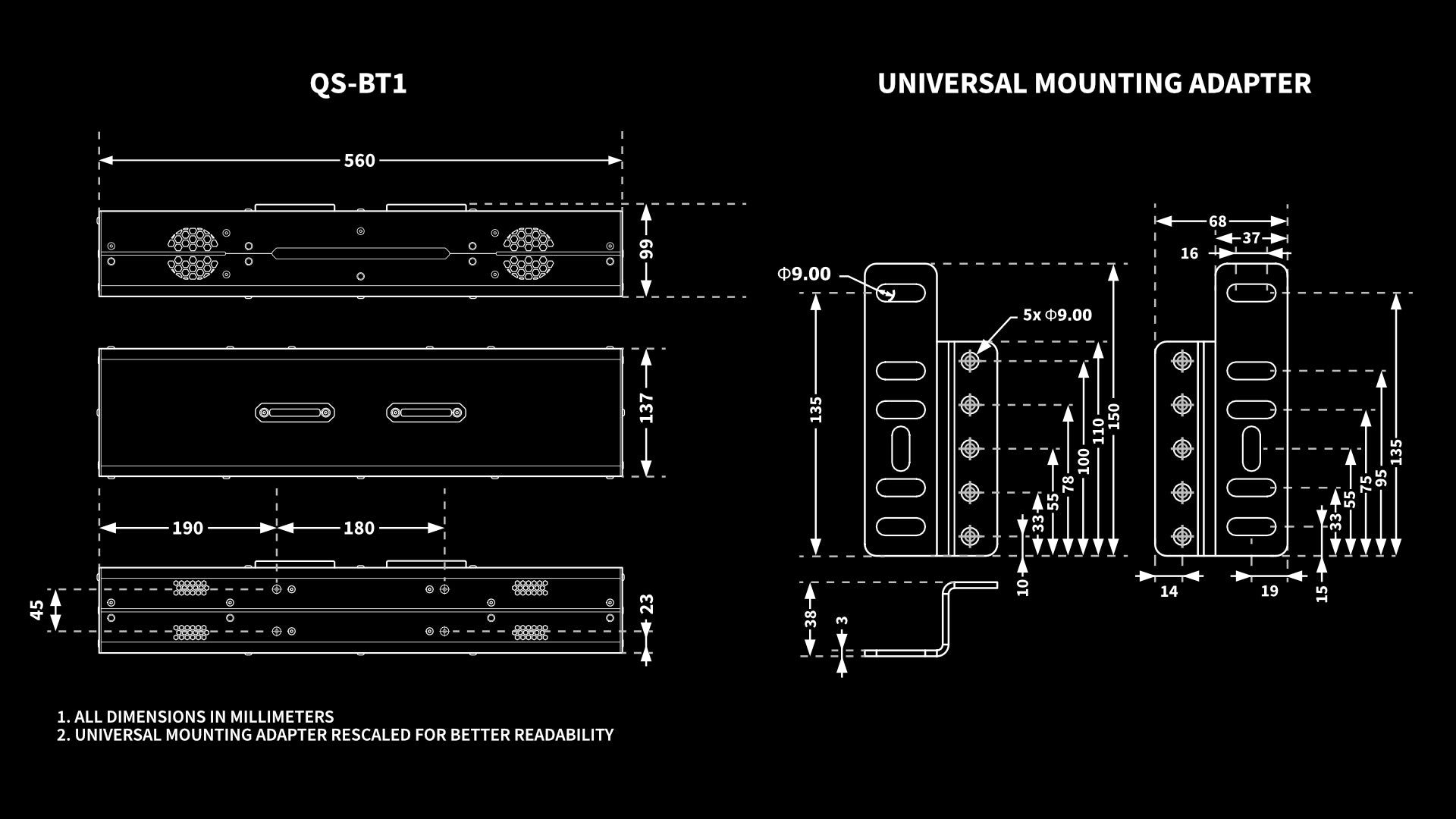

MAIN DEVICES DIMENSIONS:
Main Dimensions: 561 x 99 x 138 mm/22.13 x 3.90 x 5.43 in
Main Device Weight: 12 kg/26.46 lbs
Power Supply Weight: 2.8 kg/6.17 lbs
PACKAGING DETAILS:
Packing Box Dimensions: 660 x 255 x 180 mm/25.98 x 10.04 x 7.09 in
Packing Box Weight: 19kg/42 lb
[1] For seat movers application, QS-BT1 can be installed only to the motion platform’s top frame, close to pivot point and it will reduce allowed user weight.

Included:


Main unit (QS-BT1)
USB cable
External power supply with power cord
2x Low friction inserts for seat belts slots

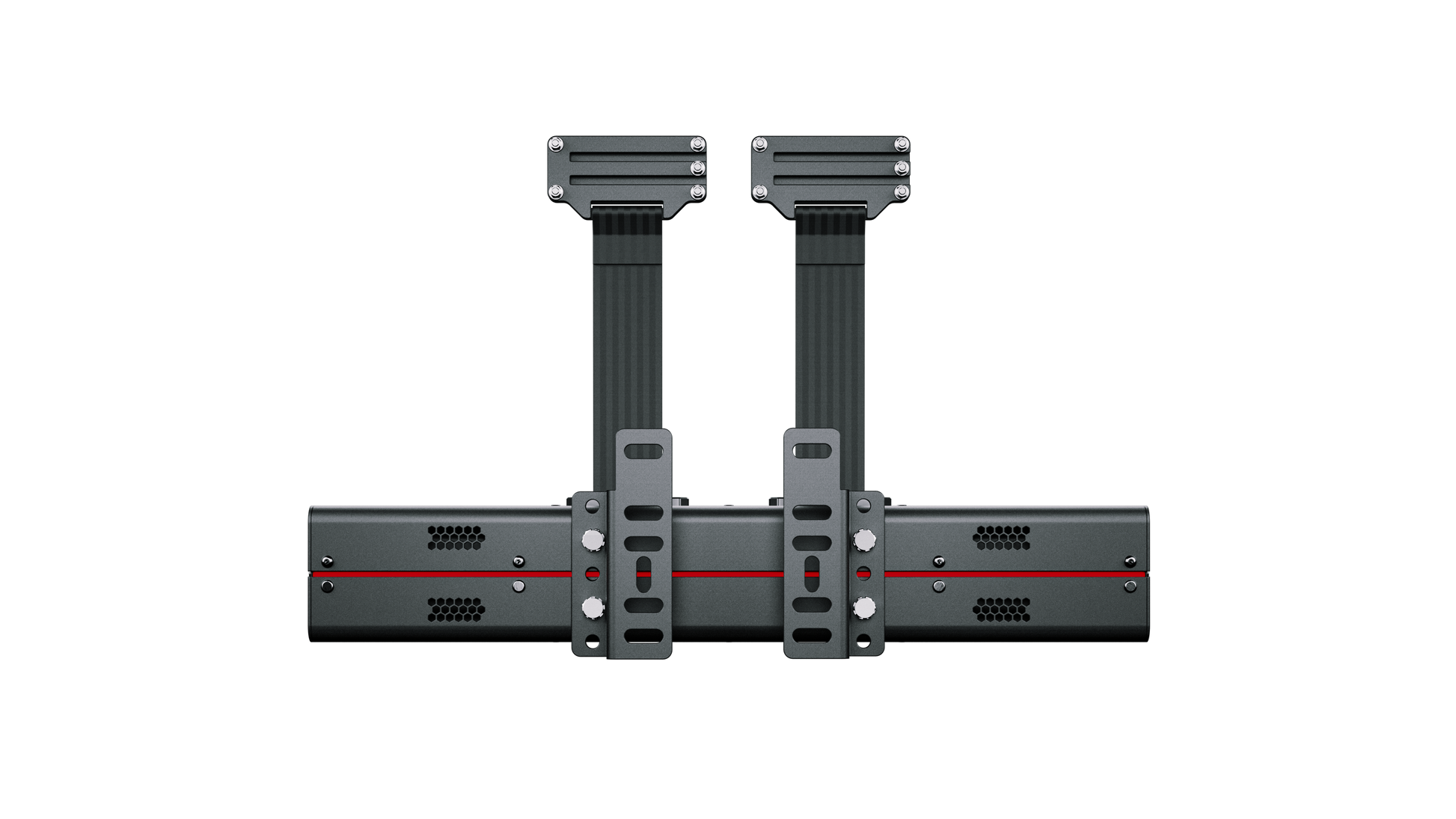

Universal mounting adapter for aluminium cockpits with necessary hardware
Motion-Lock jumper + interlink cable


Not included:

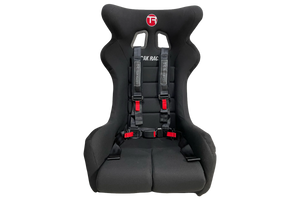

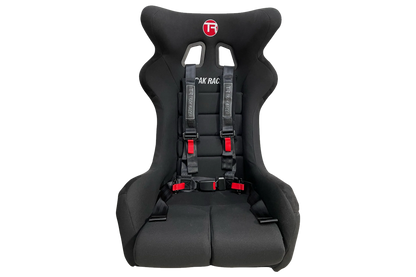

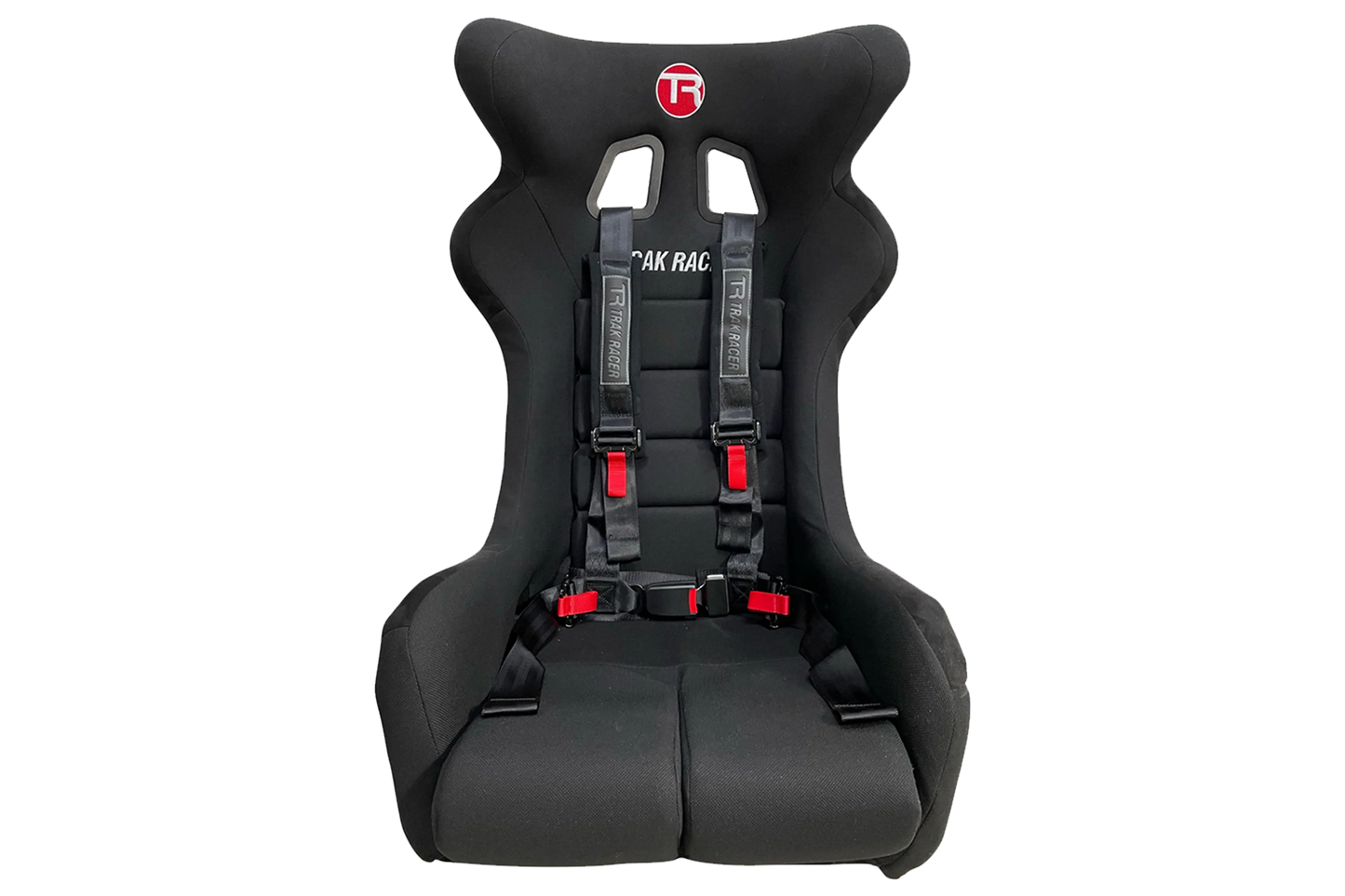

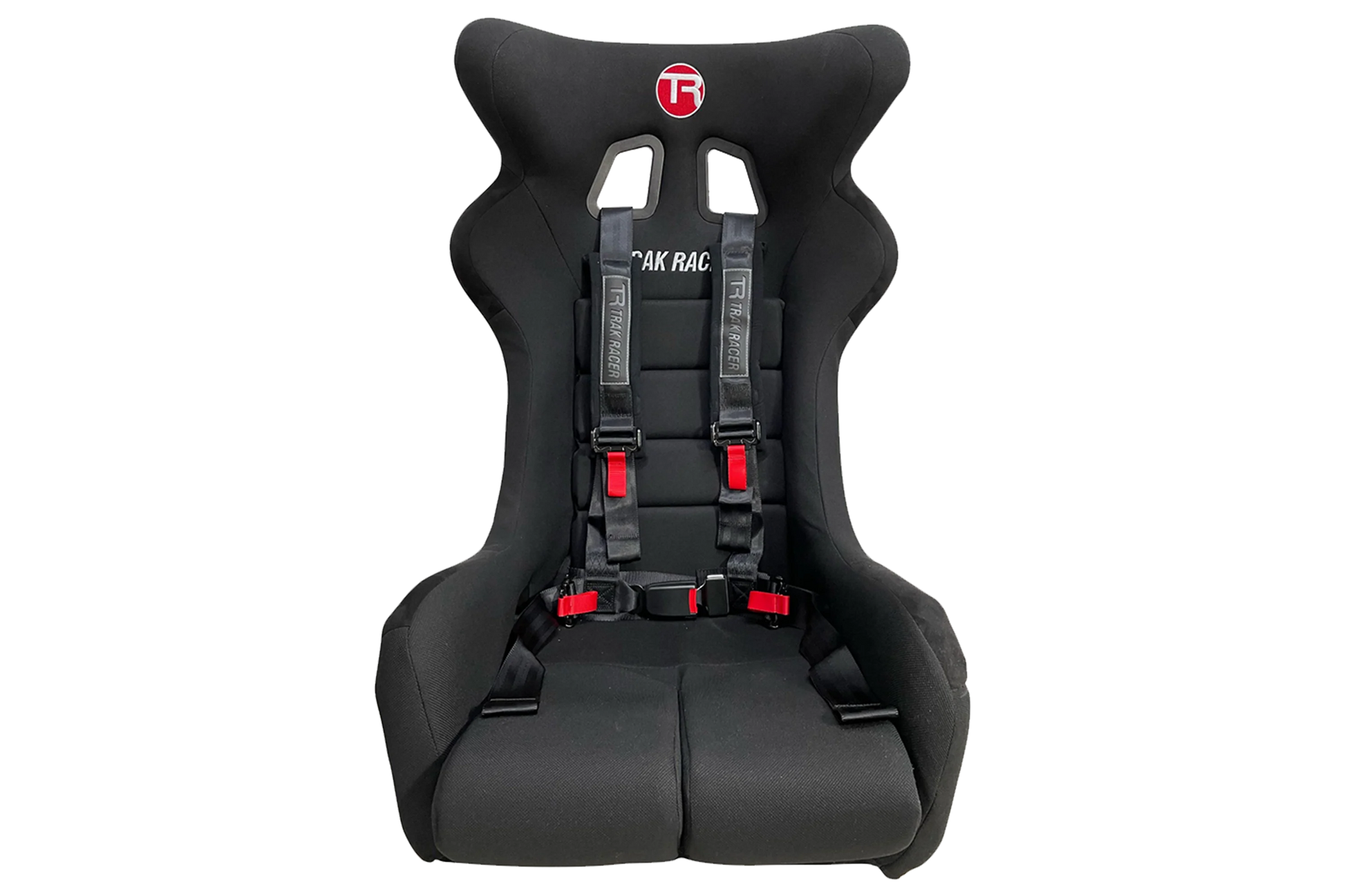

Seat belts
Cockpit
Bucket seat
Motion-Lock remote switch (sold separately)
Dedicated adapter for other cockpits (sold separately)
