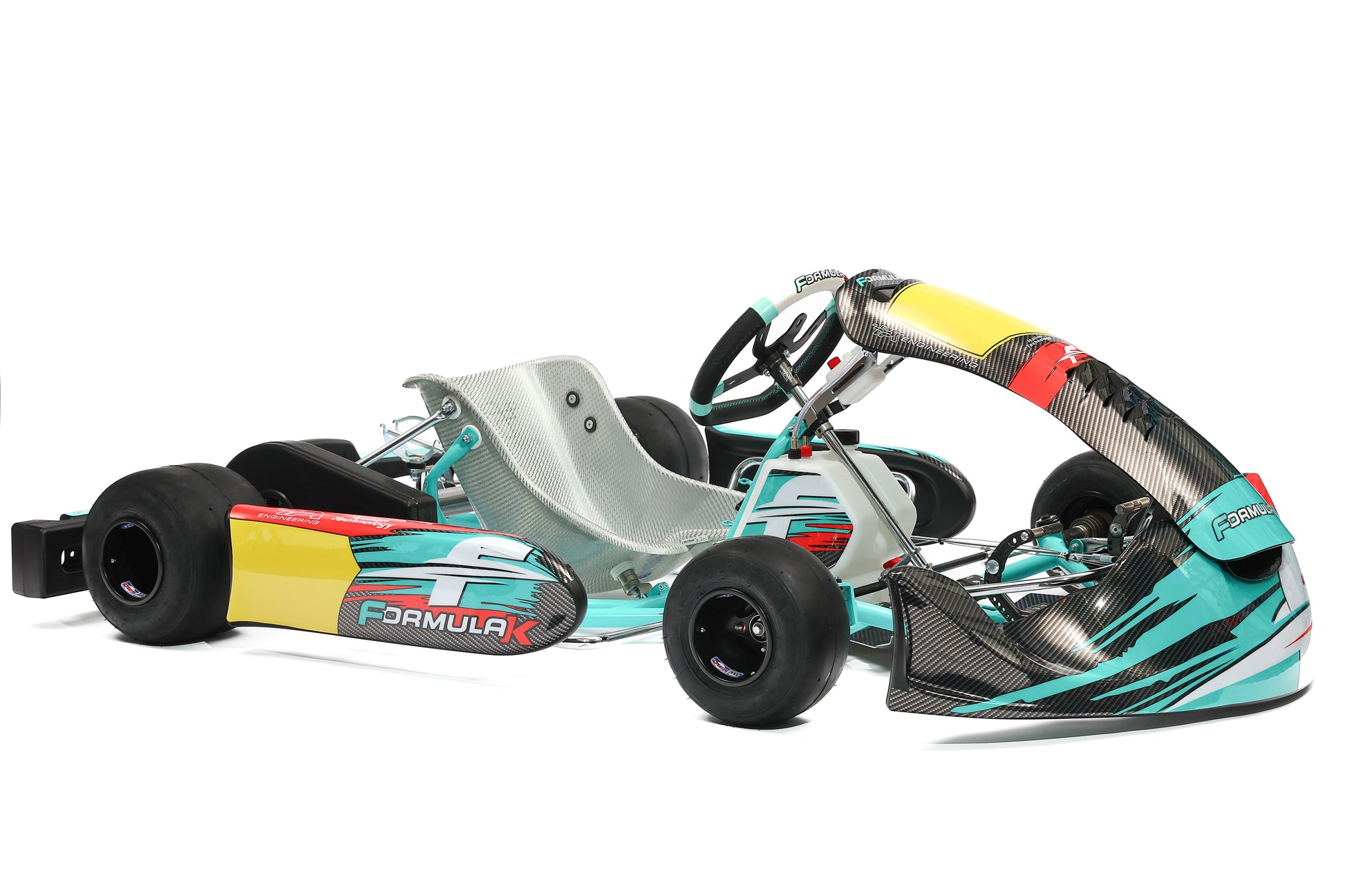

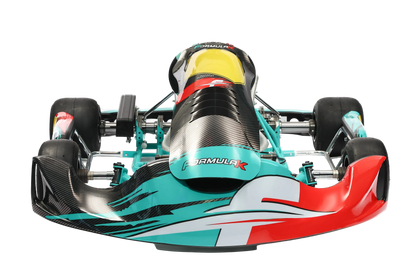

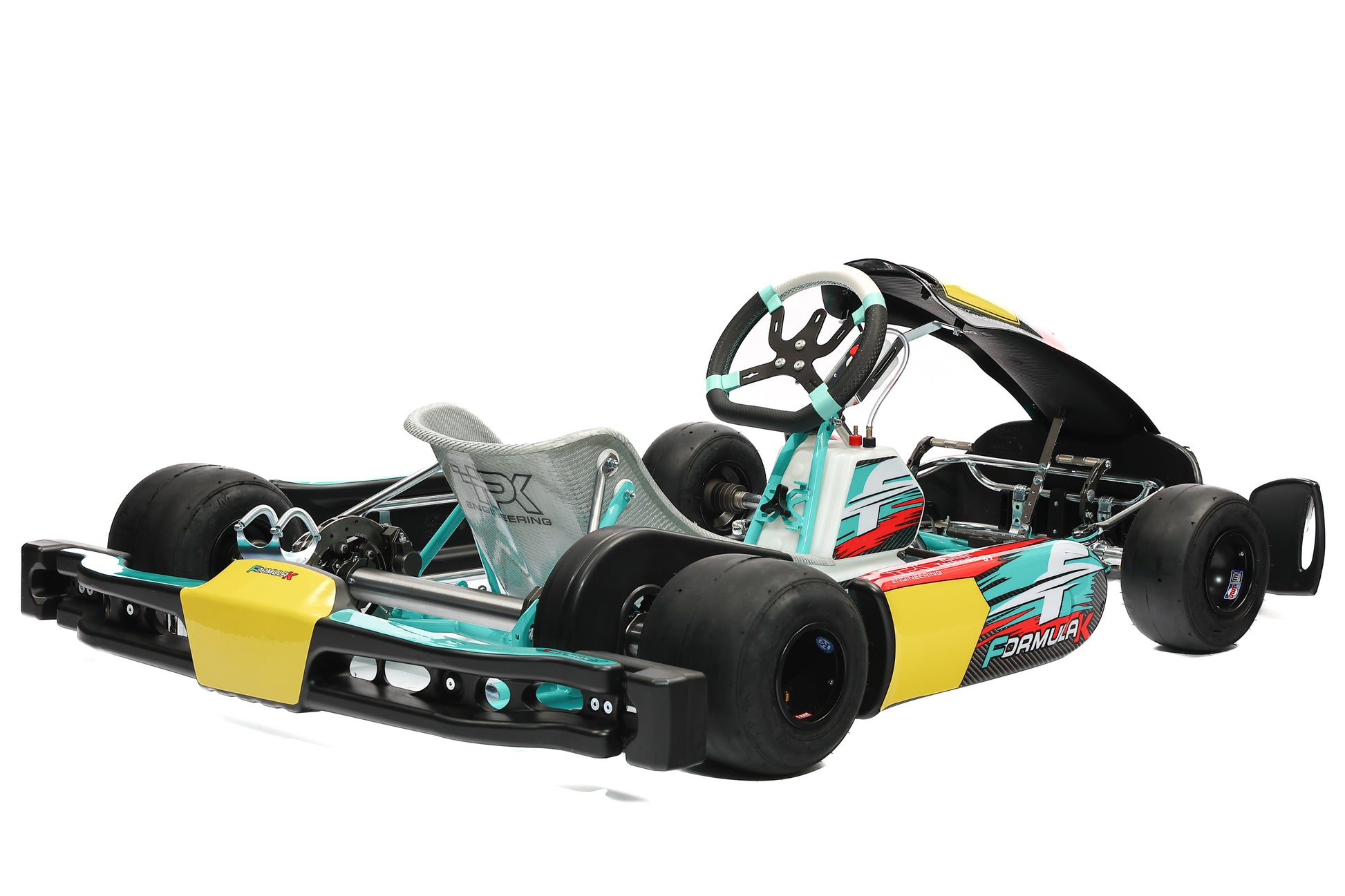

Formula K OK DRAGON EVO3 2026

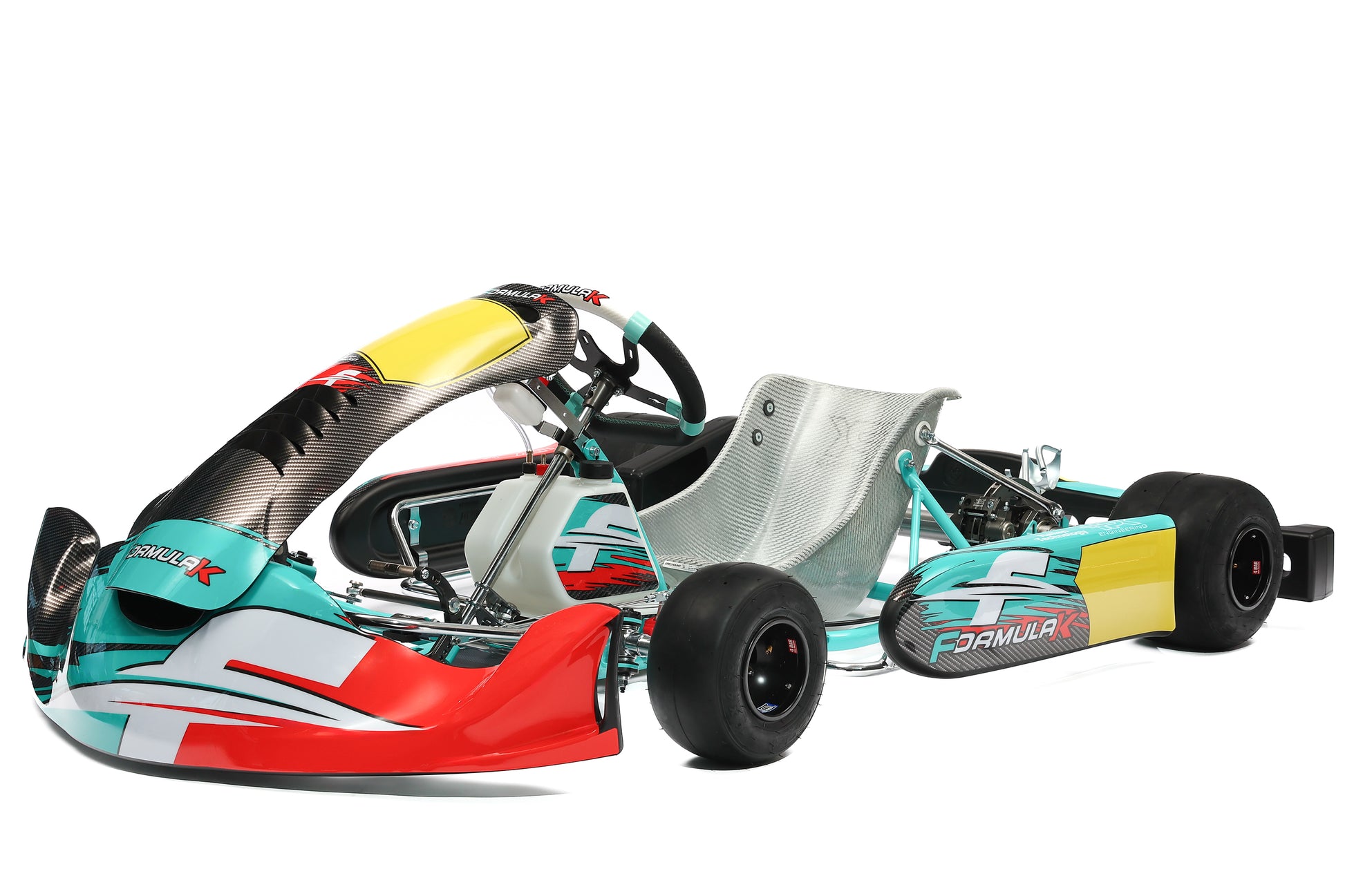

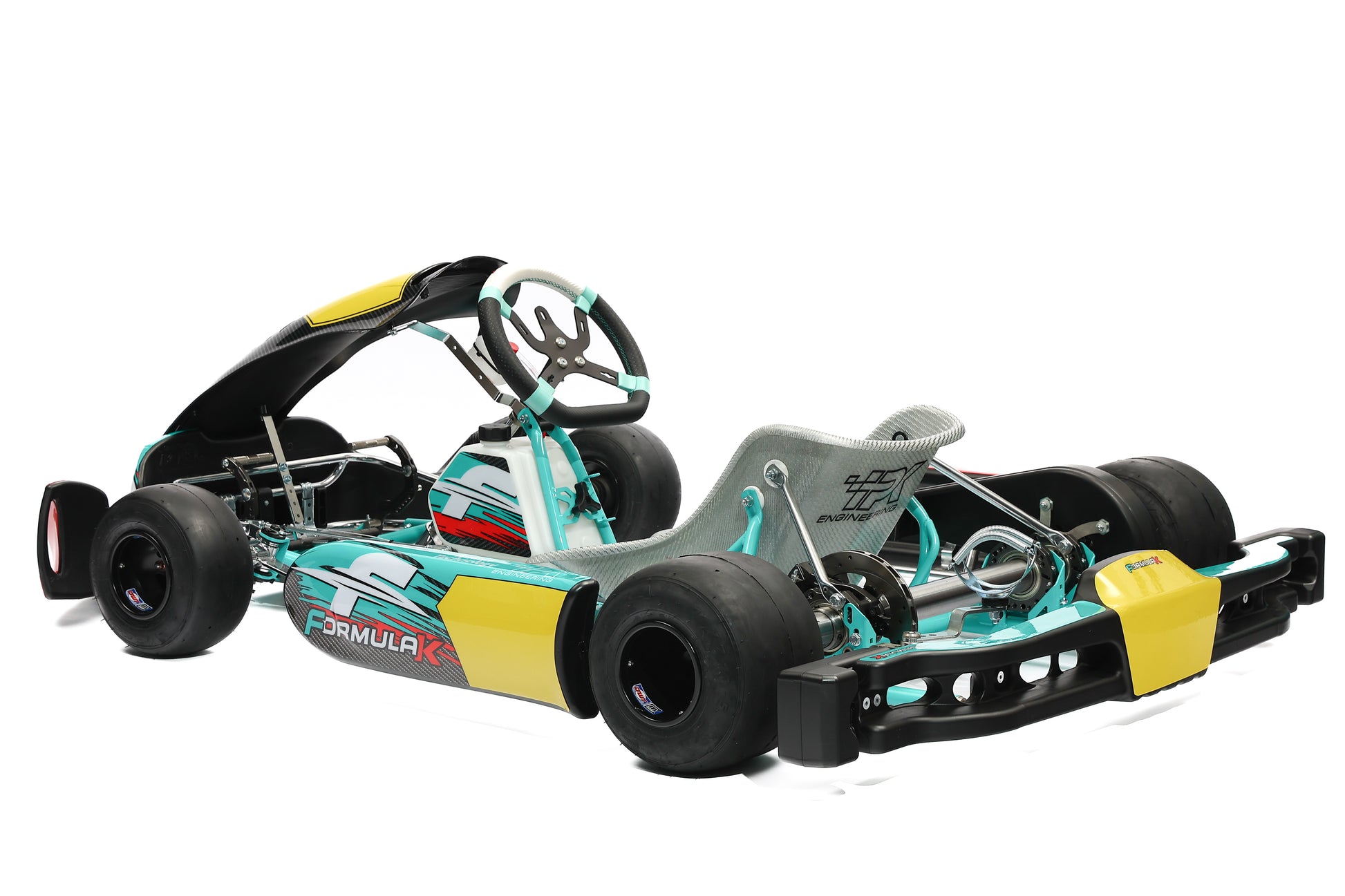

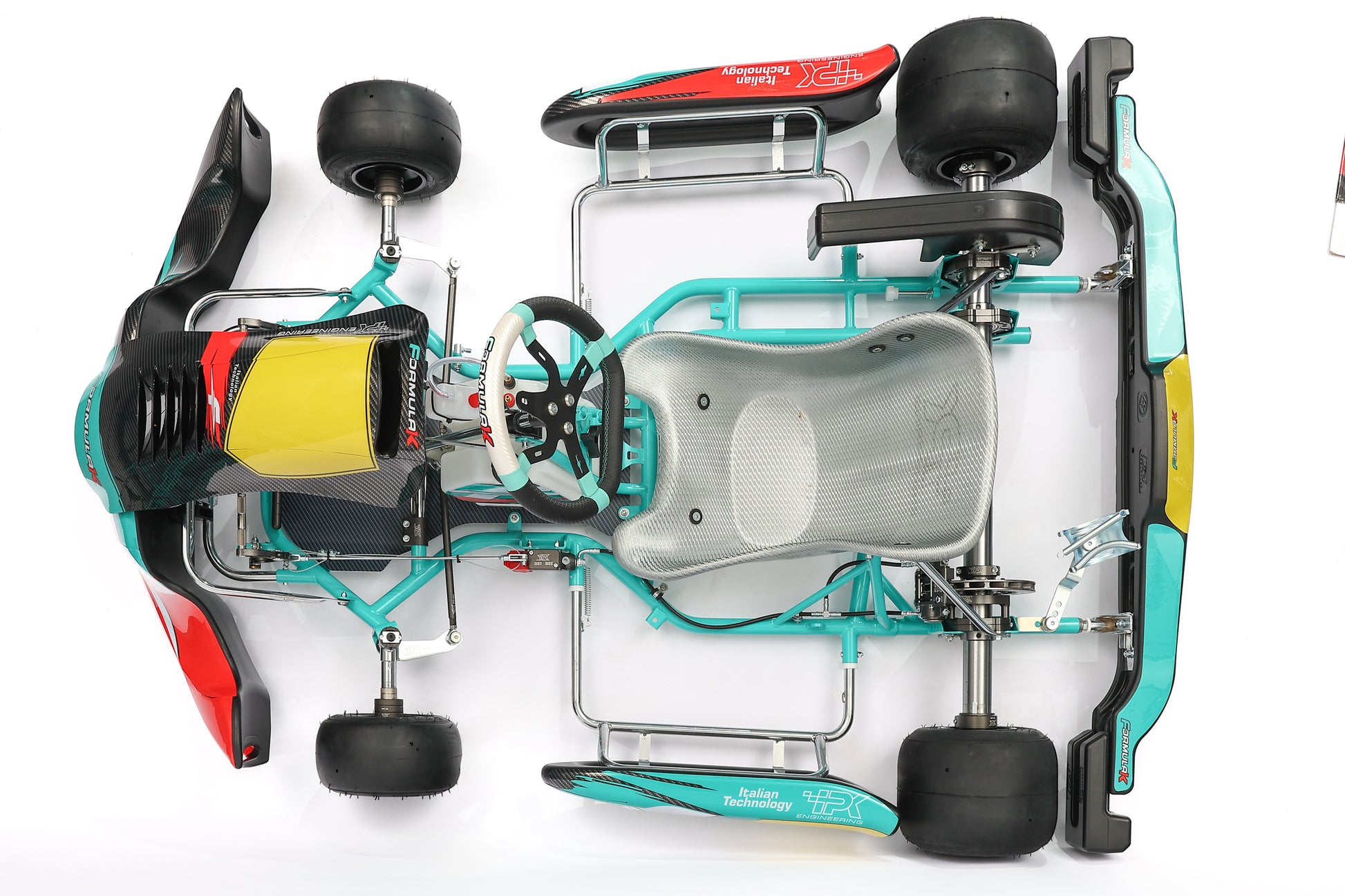

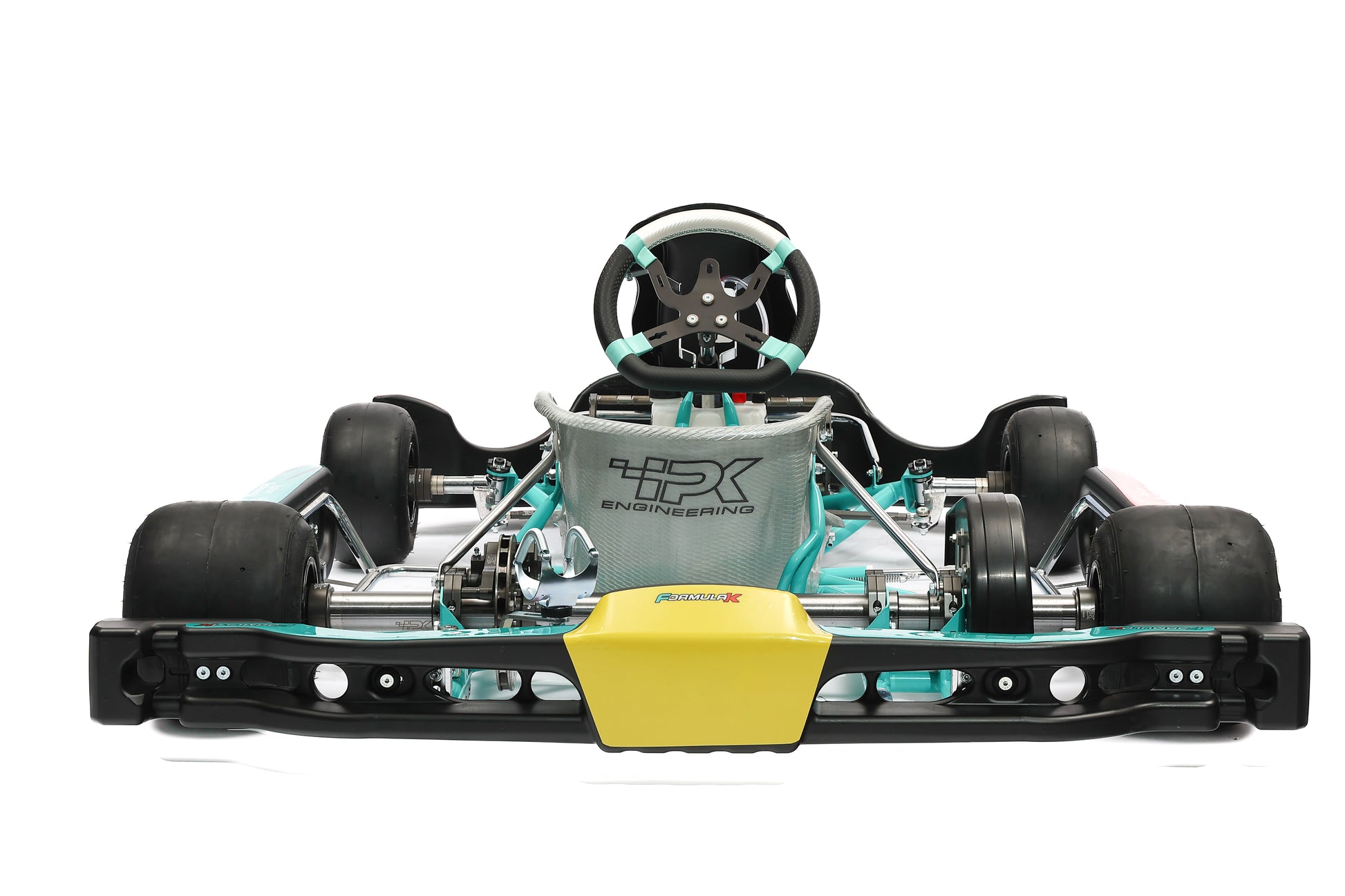

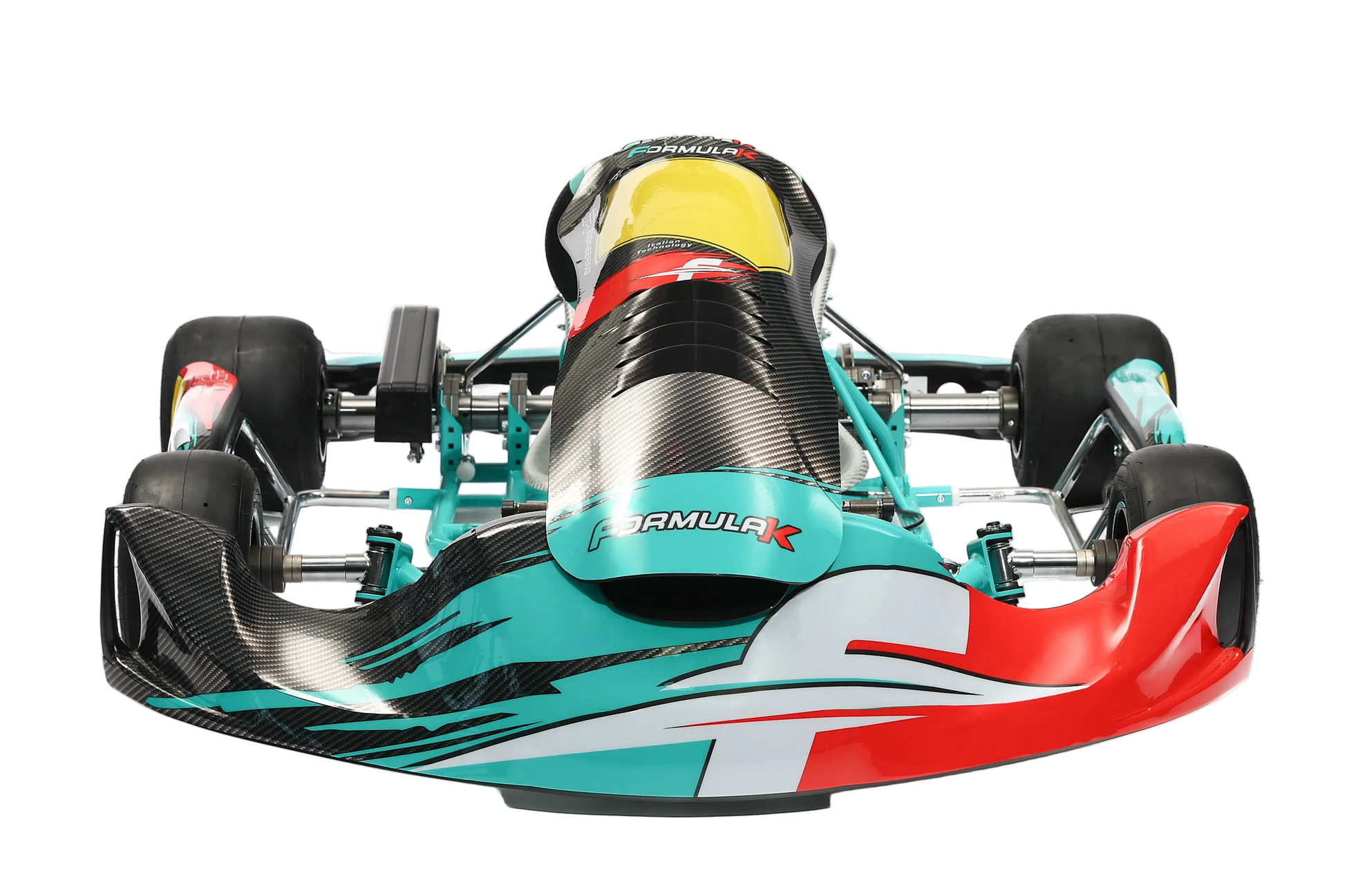

The Formula K OK Dragon Evo3 2026 Direct Drive chassis is engineered for elite OK racing, delivering outstanding balance, responsiveness, and setup flexibility.

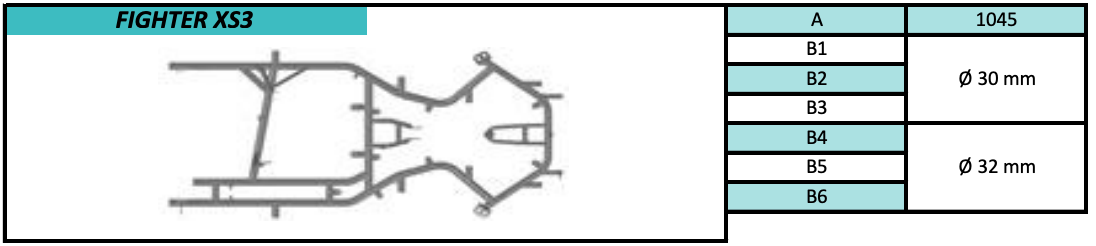

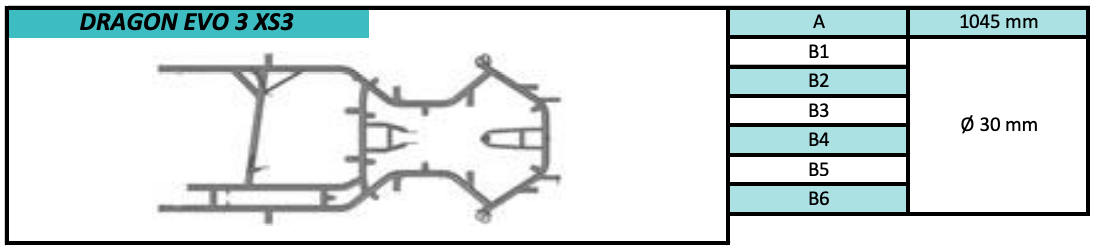

The chassis is available in two frame configurations—30 mm Ø or 30/32 mm Ø tubing—allowing teams to fine-tune rigidity based on track conditions and driving style. The rear axle height is adjustable across four positions, providing precise control over grip and weight transfer.

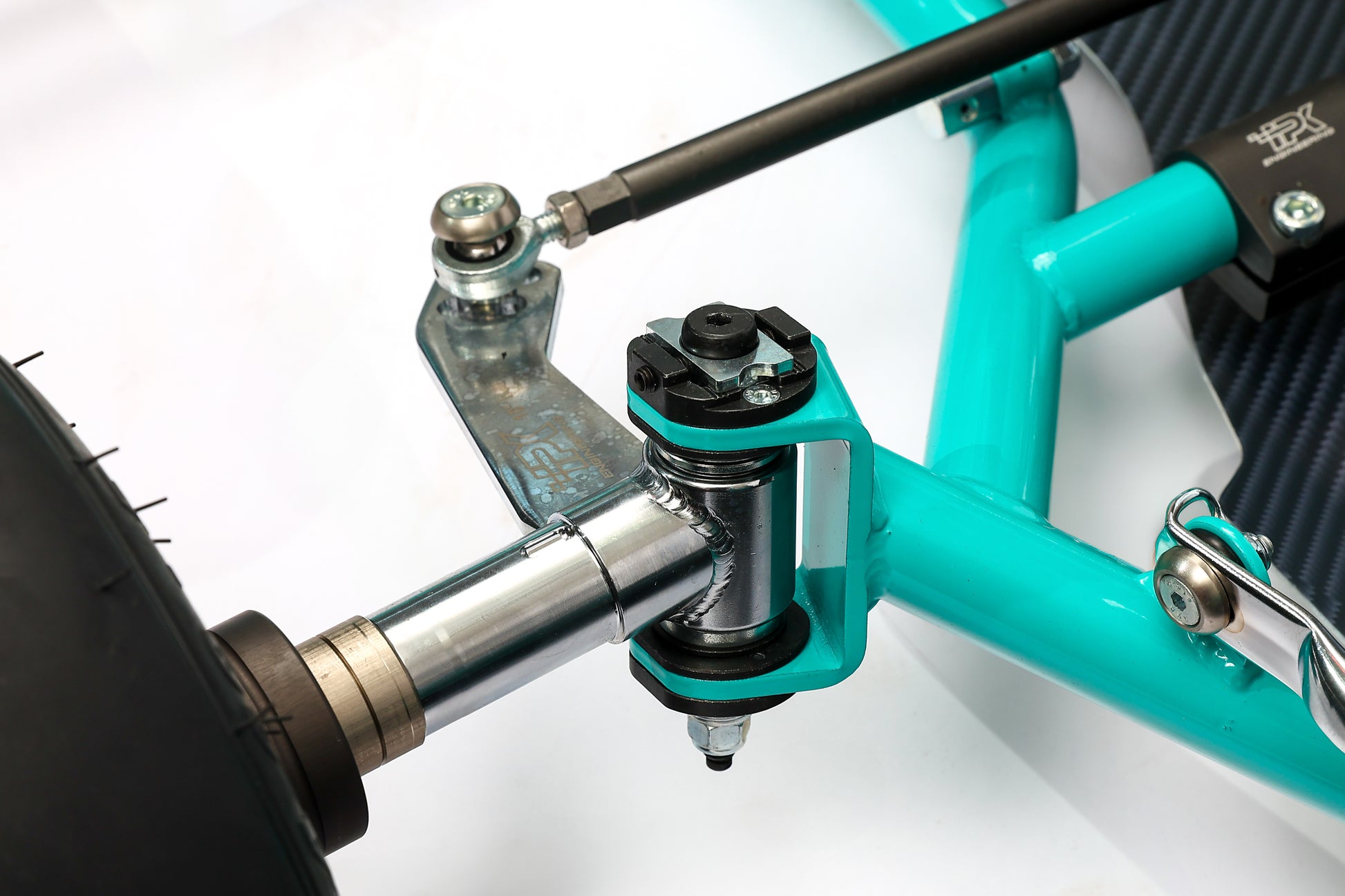

At the front, Formula K’s in-house IPK eccentric system enables accurate caster and camber adjustments through interchangeable adapters, ensuring optimal front-end geometry for any setup.

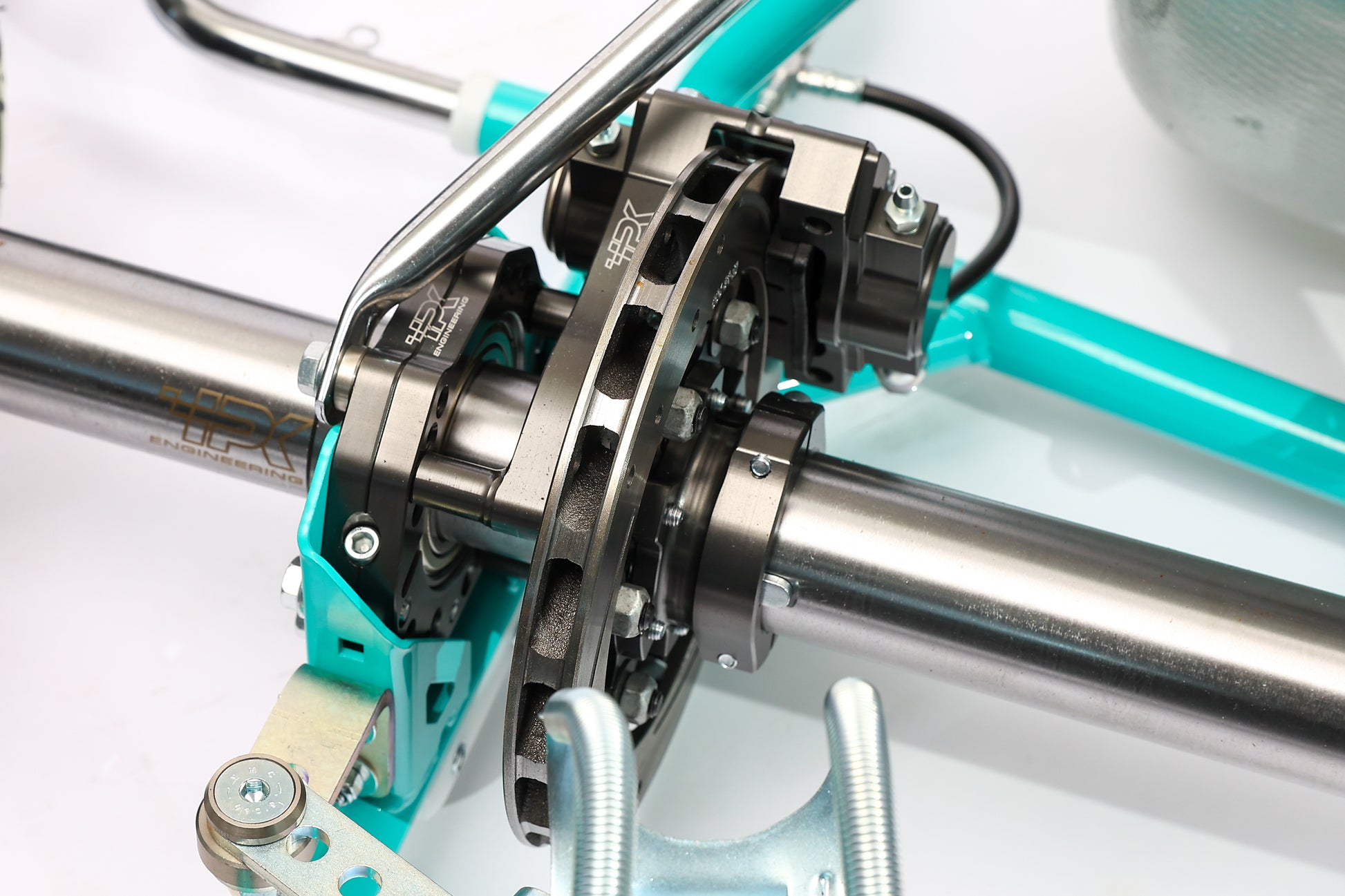

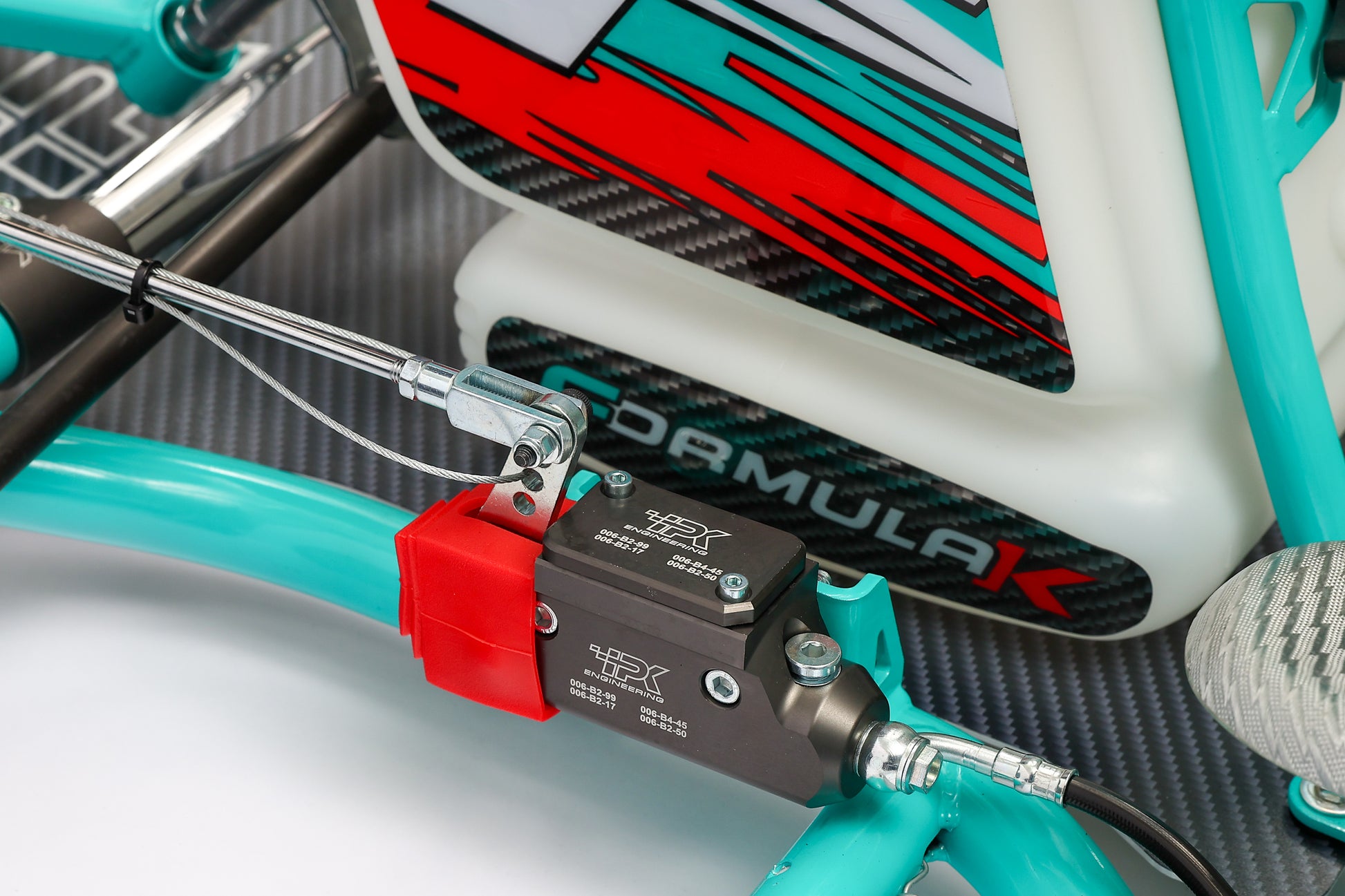

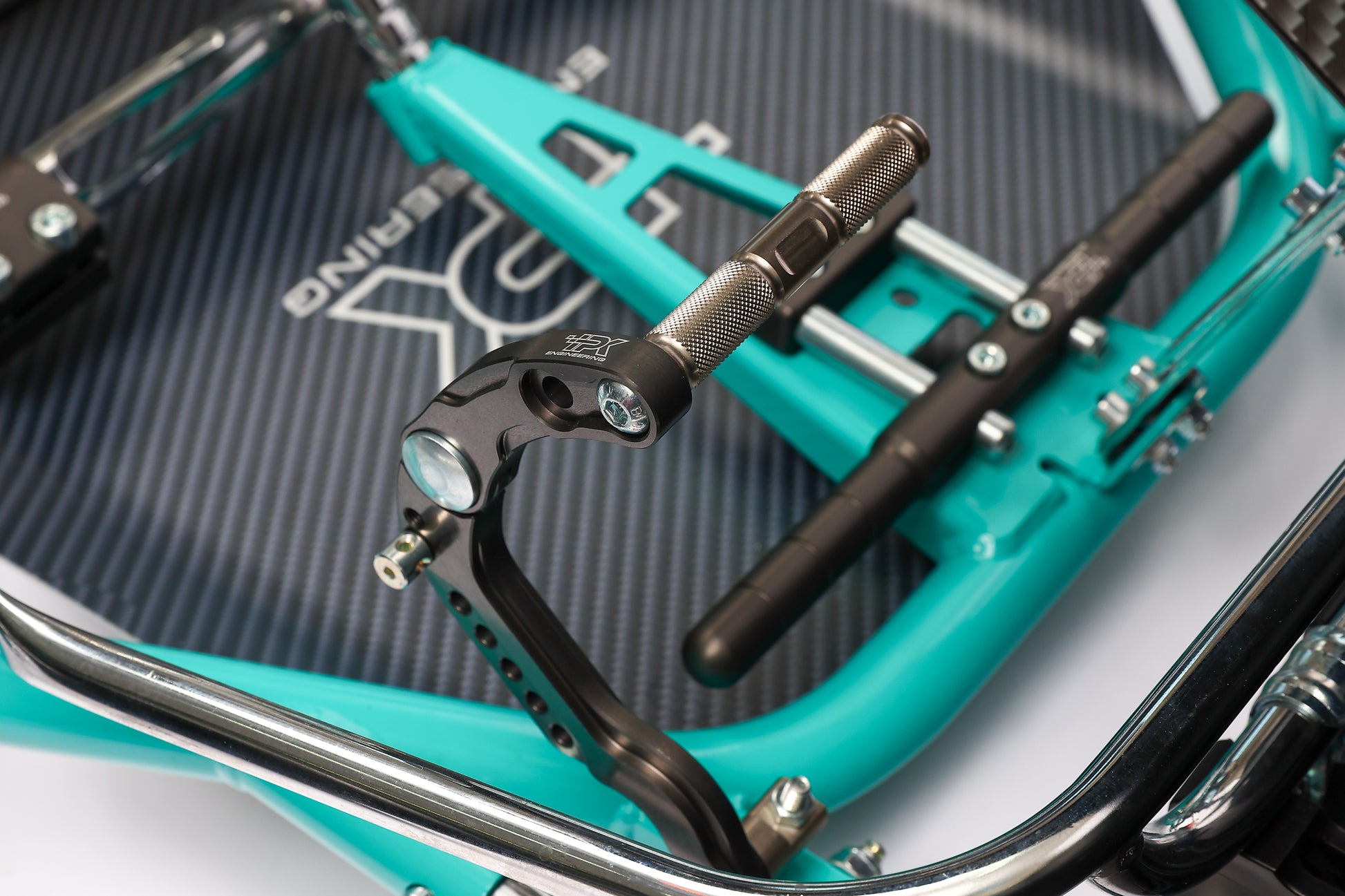

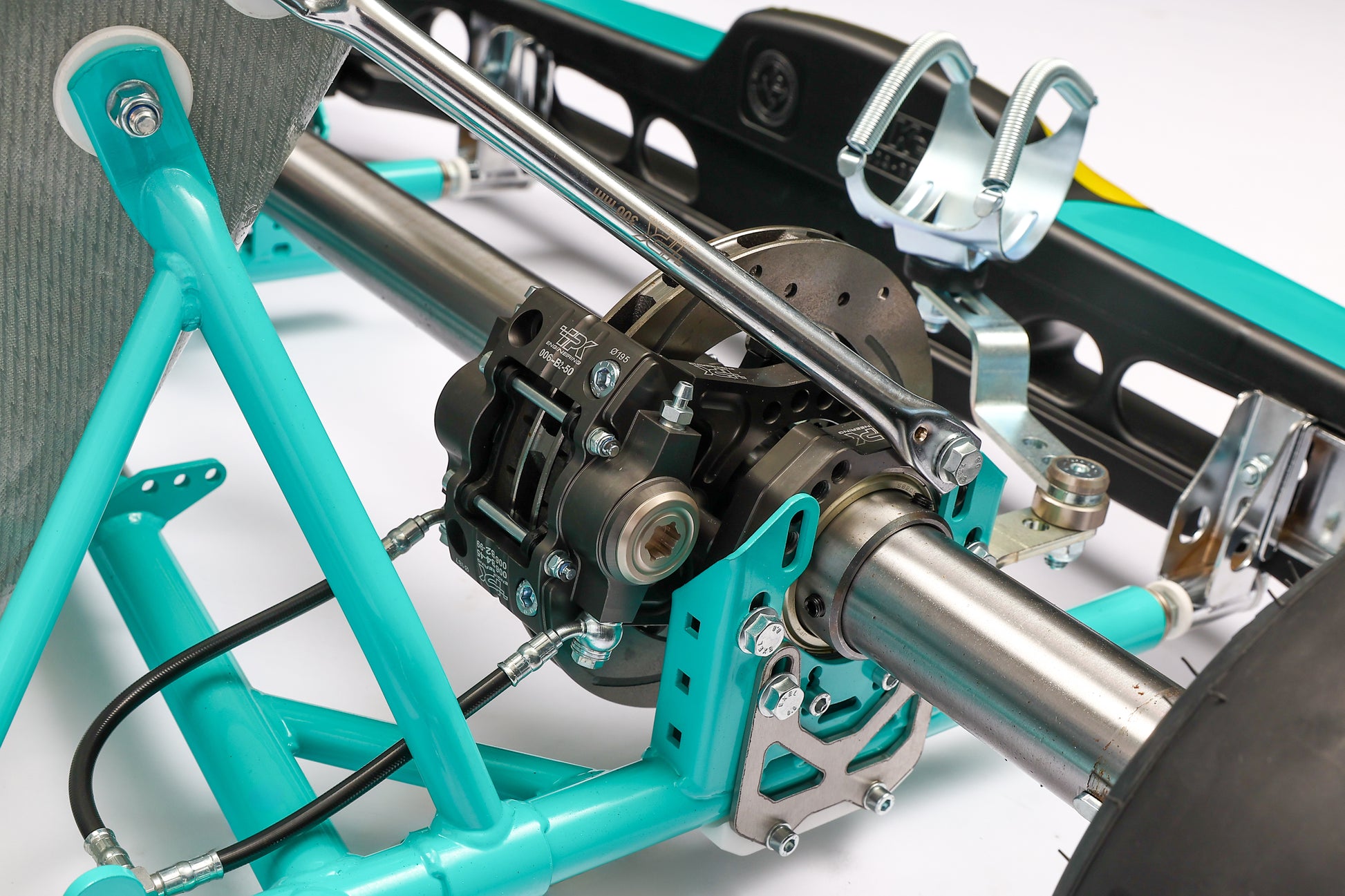

Braking performance is handled by the proven RBS V3 hydraulic braking system, offering multiple adjustment options at both the pedal and master cylinder for consistent, controllable braking feel.

Technical Specifications

• Brake System: Hydraulic RBS V3

• Brake Disc: Ventilated floating discs

• Rear Axle: Ø50 × 2 × 1030 mm MR axle (standard equipment)

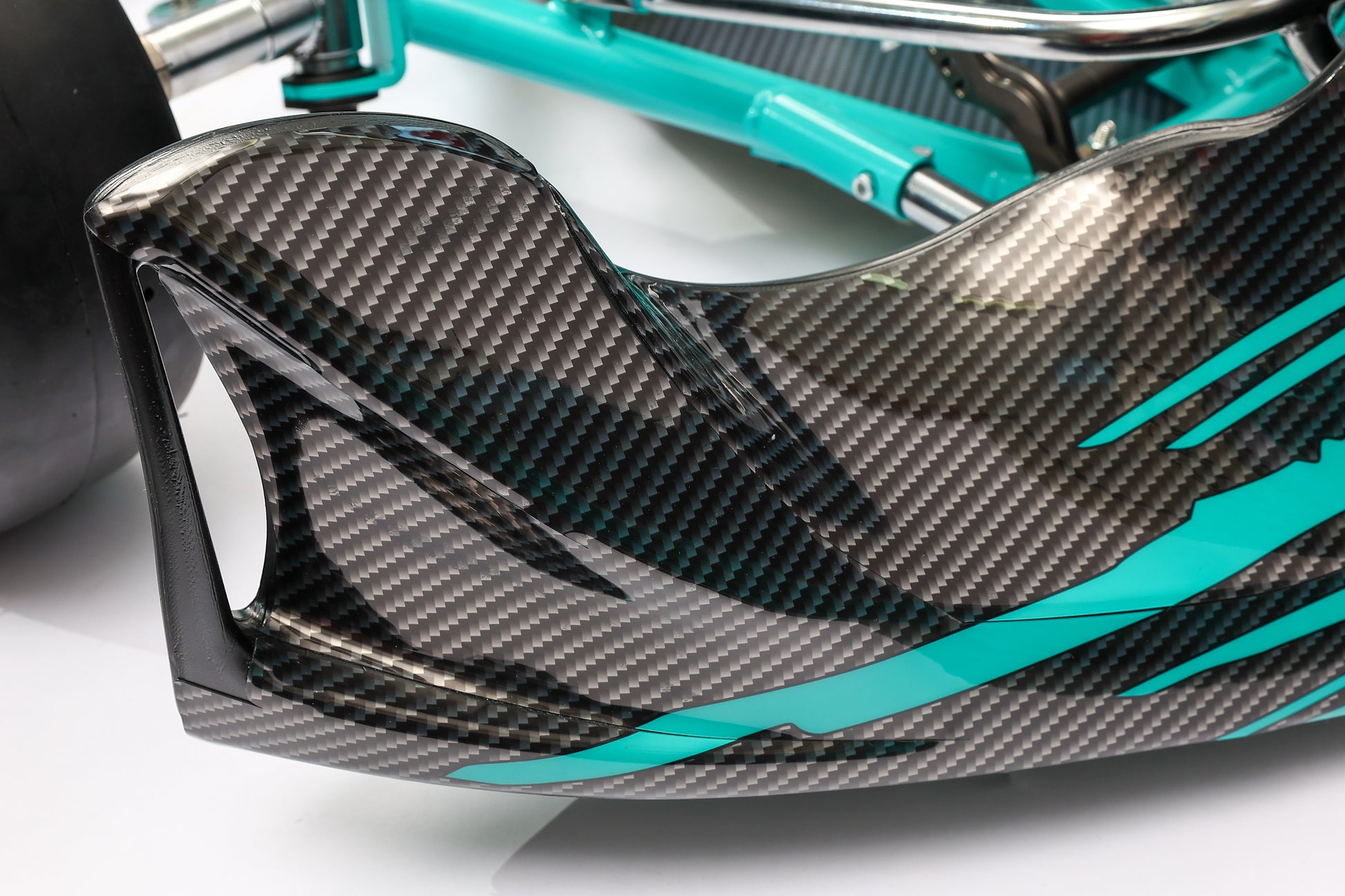

• Bodywork: 507/509 with CIK-FIA homologated mounts

• Wheel Rims: DWT “V” Series magnesium

  • Front: 132 mm

  • Rear: 212 mm

• Fuel Tank: 8.5 L

• Spindles: Ø25 mm

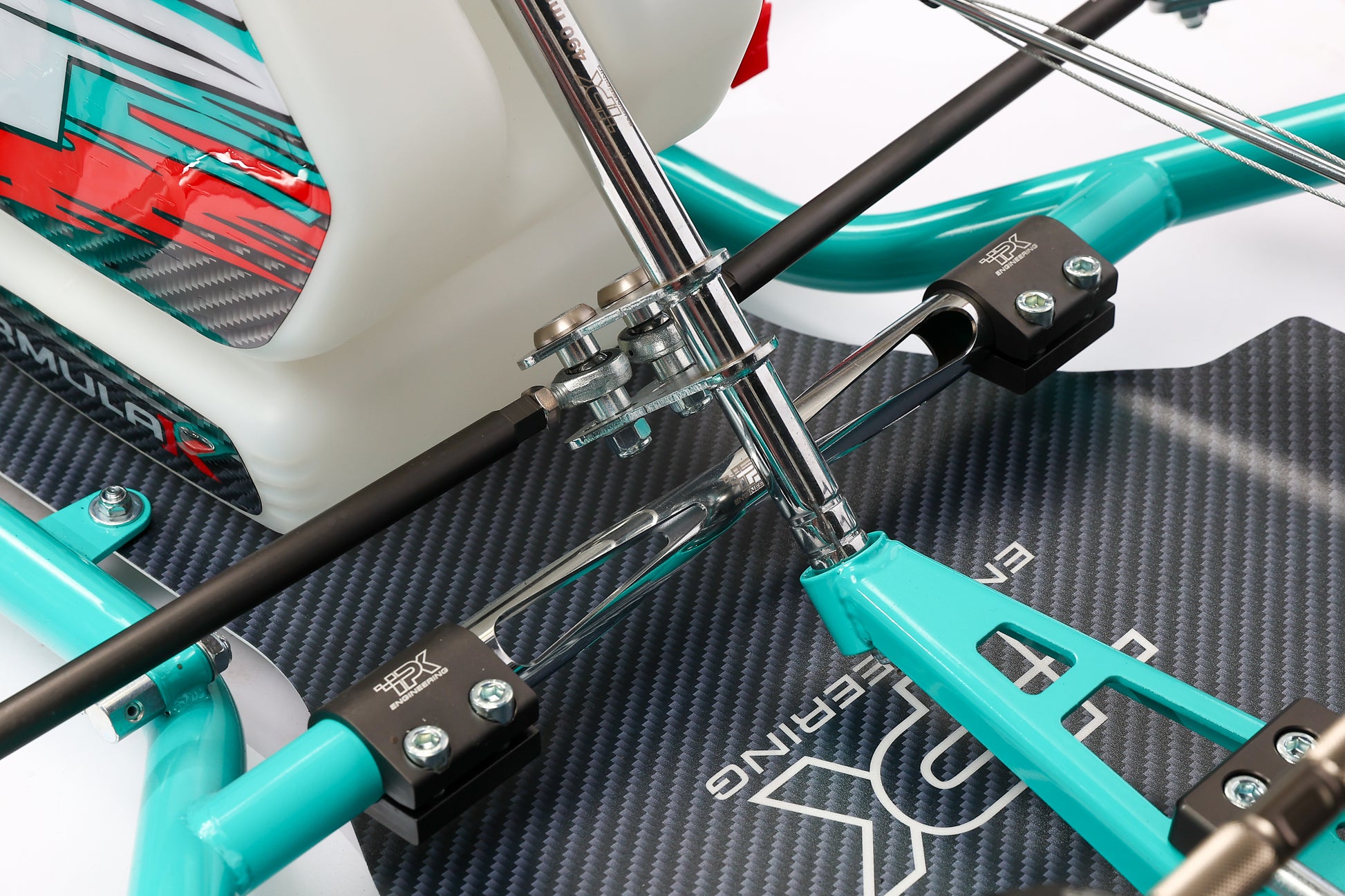

• Steering Wheel: M6 R model
