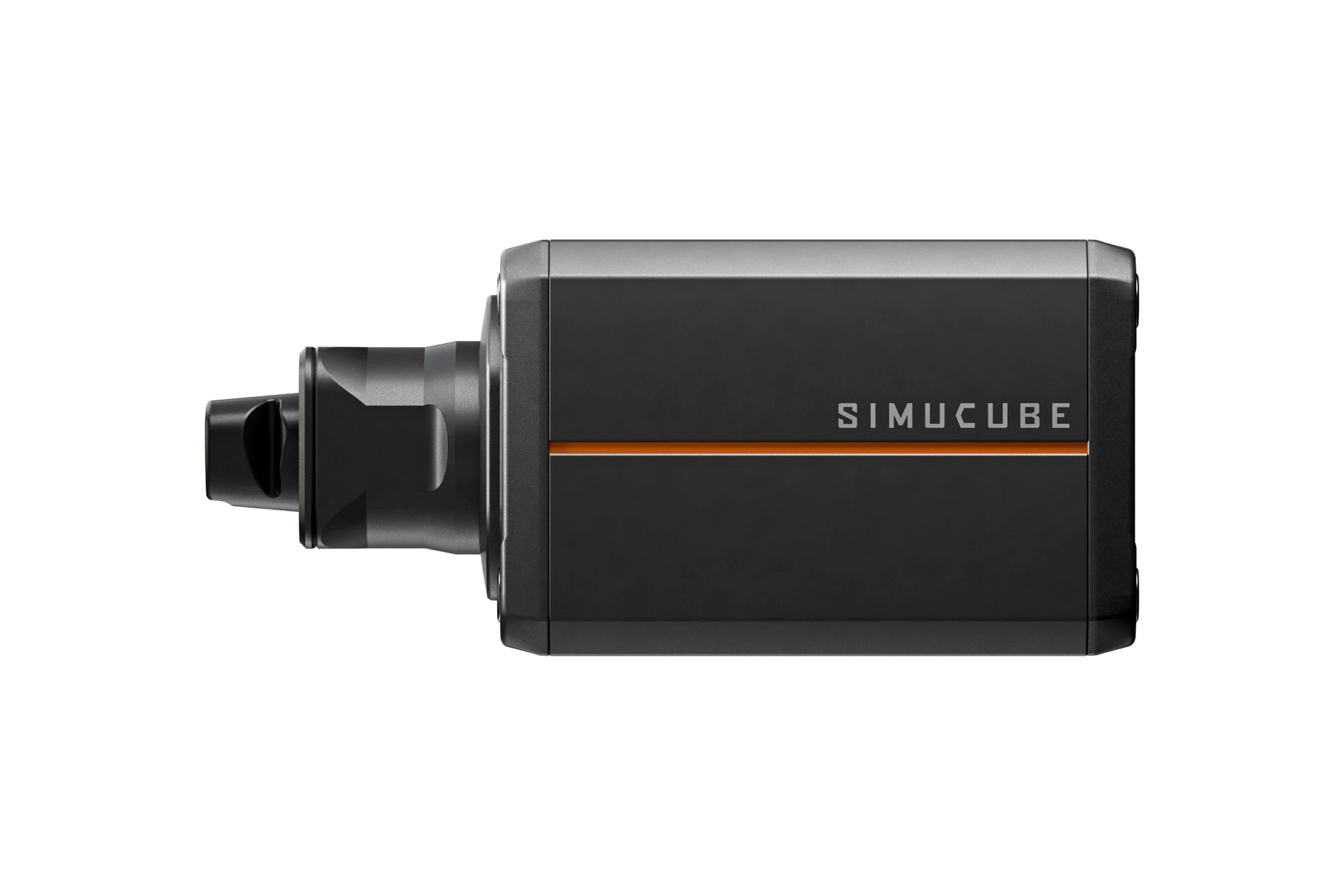

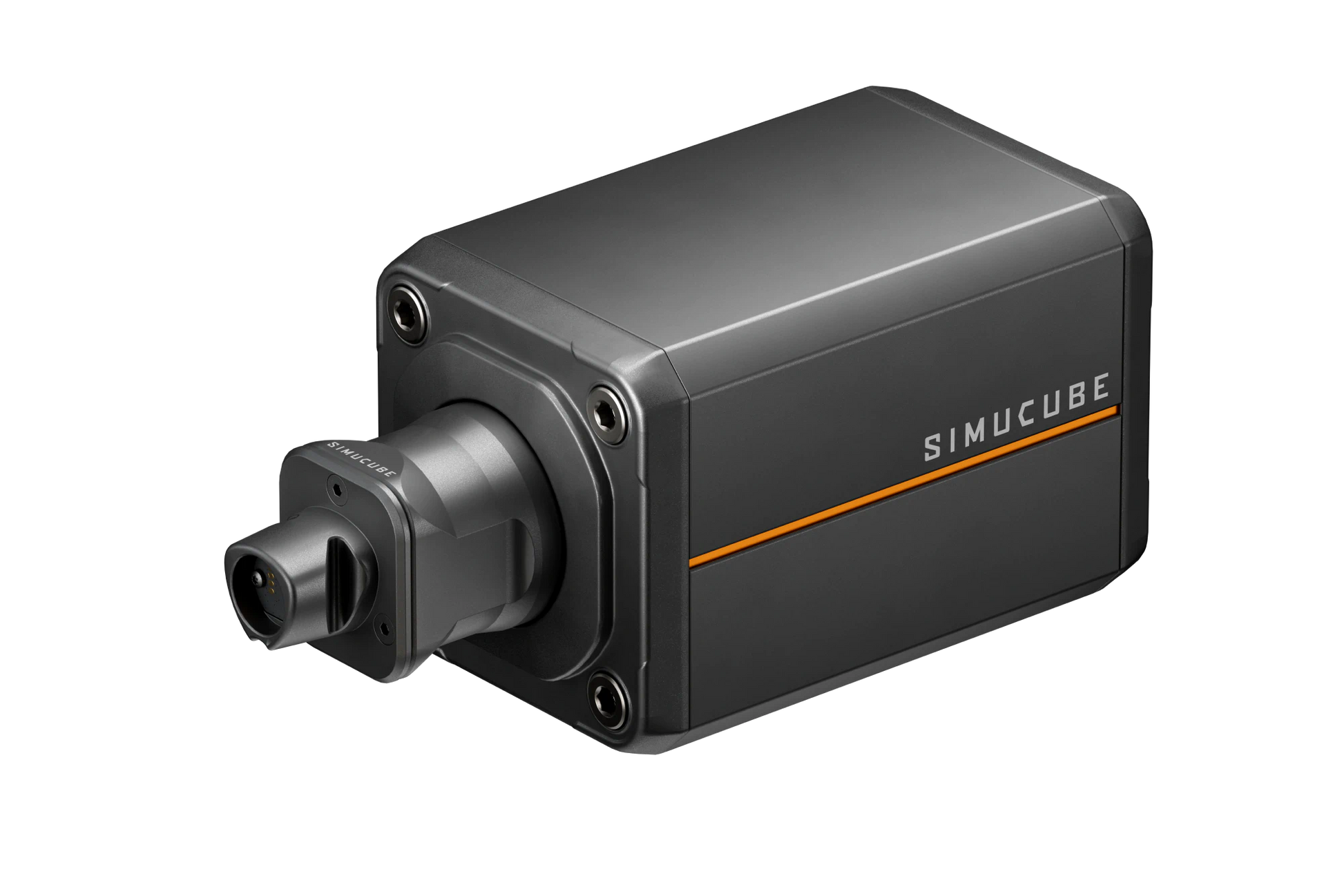

The Simucube 3 Pro is the flagship Direct Drive wheelbase engineered for professional-level sim racing. With 25 Nm of ultra-precise torque, a high-response SPM servo motor, and a completely redesigned force-control algorithm, it delivers unmatched realism and smoothness — as close as sim racing gets to a real race car.

Powered by TrueDrive software for deep customization, adapting the force feedback perfectly to your driving style. Designed in Finland. Manufactured in the EU.

Requires Simucube Link Hub for operation.
When using multiple Link devices (e.g. Simucube 3 + ActivePedal), a Teltonika Ethernet Switch is required.

Key Features

25 Nm Direct Drive force feedback for professional competition

High-performance SPM servo motor designed exclusively for Simucube

Telemetry-enhanced effects: ABS, RPM, road texture, kerbs & more

Advanced control algorithms for silent, detailed force response

Front & bottom mounting for wide cockpit compatibility

Built to withstand full-force competitive racing without performance loss

Long-life hardware engineered for the highest endurance standards

Specifications
Performance

Max Torque: 25 Nm

Angle Sensor: 23-bit absolute (8 million steps)

Power Supply: 360 W (450 W peak)

Motor: High-response Direct Drive optimized SPM

Warranty: 3 Years

Dimensions & Mounting

Wheelbase Size: 135 × 135 × 303 mm

Weight: 11 kg

Mounting: Front / Bottom

Hole Patterns: 135 mm & 78.4 mm

Centering Feature: 110 mm

Package Size: 190 × 300 × 390 mm

What’s Included

Simucube 3 Pro wheelbase

Power adapter

RJ45 cable

AC power cord

Control box

Quick Start Guide

Fasteners Kit:

4 × M8 washers

4 × M6 washers

2 × M5 washers

4 × M8 × 35 allen bolts

4 × M8 × 30 allen bolts

2 × M5 × 30 allen bolts

4 × M6 × 16 allen bolts

2 × M5 T-slot nuts (8 mm slot)

Not included:
Simucube Link Quick Release for SC3, Simucube Link Hub (sold separately)
